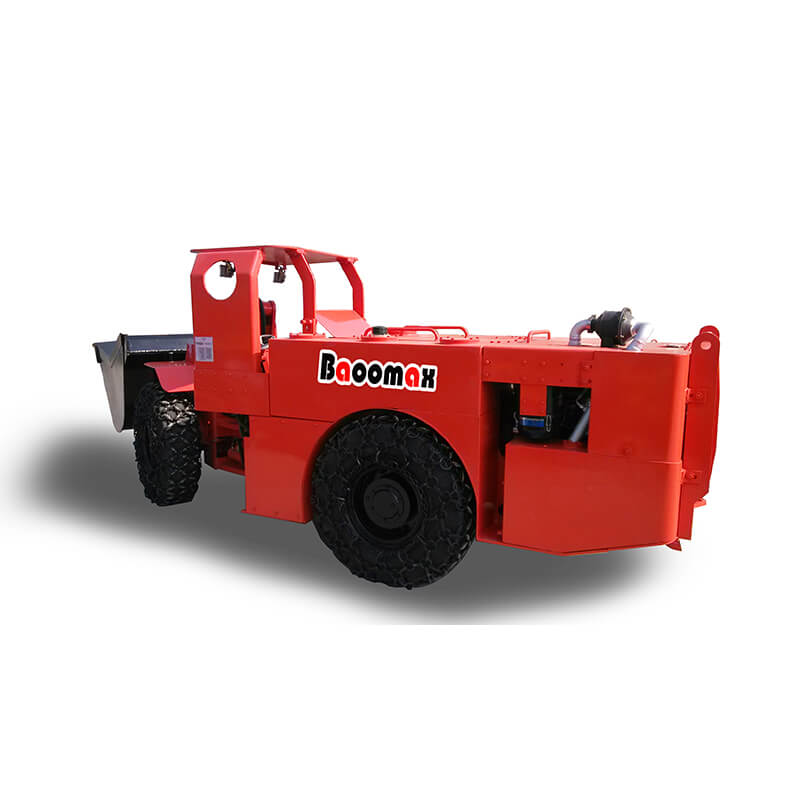

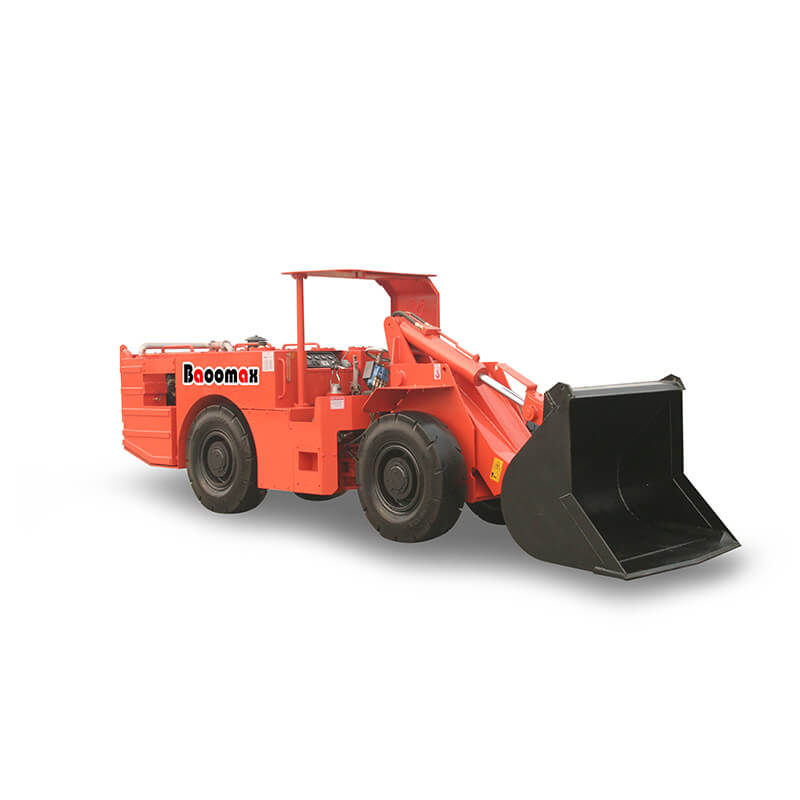

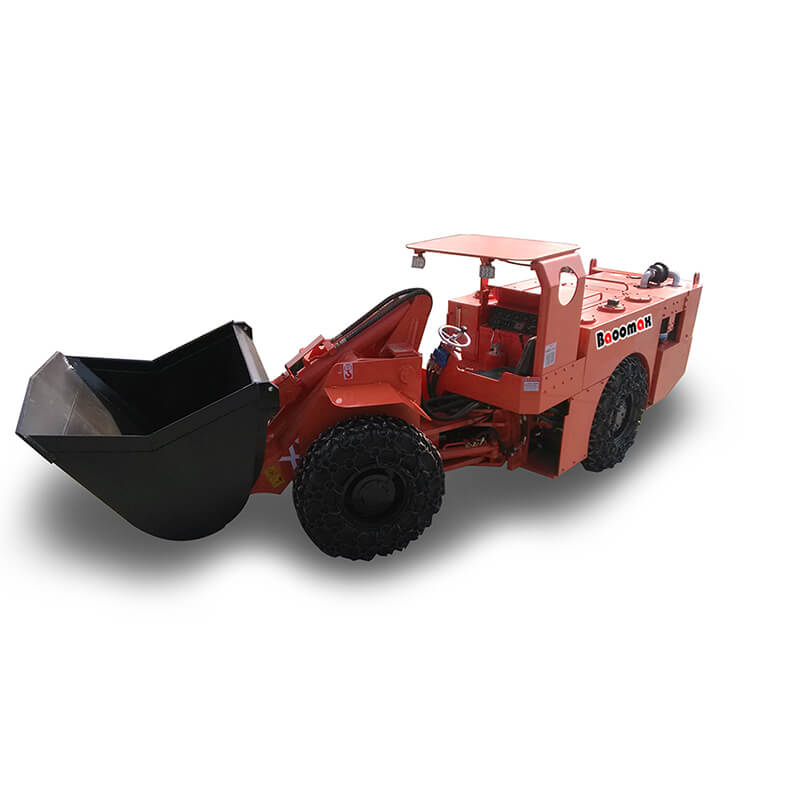

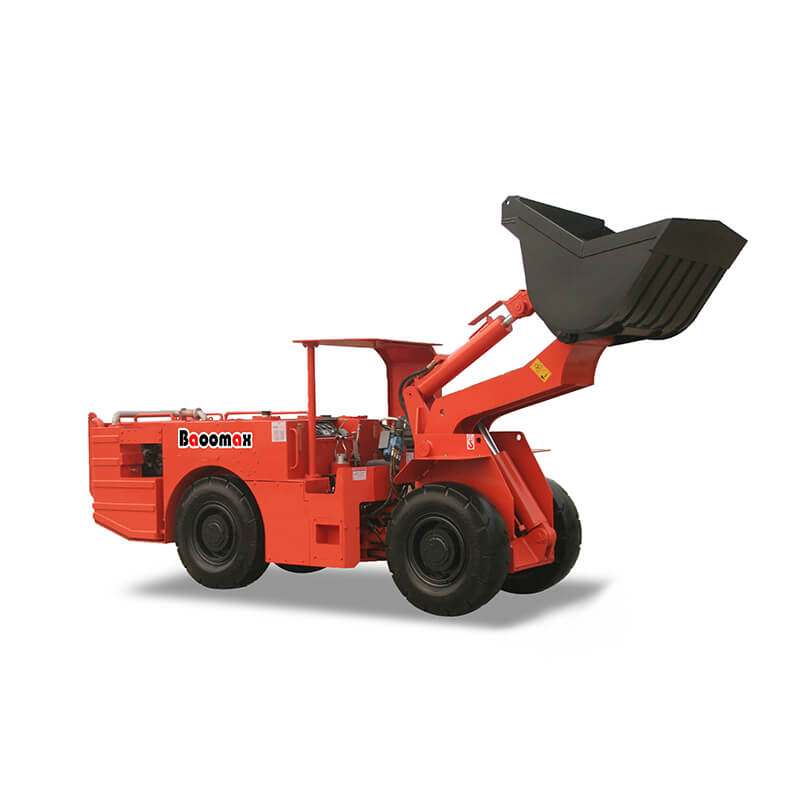

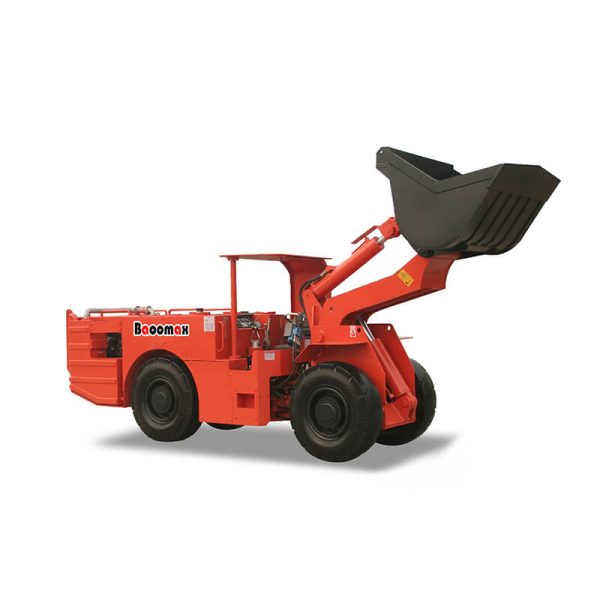

SP10 Underground Scoopram

Baoomax mining Underground scooptram, also known as load-haul-dump (LHD) vehicle, it’s heavy-duty machinery used in underground mining operations. Our underground mine loader scooptram is built with the highest standards of craftsmanship and quality. It is designed to withstand the demanding conditions of underground mining, ensuring durability and long-term reliability.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Also Baoomax scooptram 1 cubic yard is equipped with a comprehensive range of safety features to protect your operators and ensure a secure working environment..

With its powerful engine, optimized powertrain, and advanced hydraulic systems, it delivers outstanding speed, agility, and precision. Whether it’s hauling heavy loads, navigating tight spaces, or maneuvering efficiently, our scooptram outperforms others in its class.

Main features:

  1. Power system adopts top brand YTO engine or CUMMINS/DEUTZ engine with low speed and high torque.
  2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
  3. Operating system adopts pilot control to make operation easily and work efficiently.
  4. Service brake adopts multi-disc wet brake to guarantee its safety and reliability.
  5. Exhaust cleaning system is equipped with  diesel oxidation catalyst (DOC) and water filtration system, greatly reducing air pollution.
  6. Technology leader slewing structure, hydraulic steering, lower failure rate, easy to maintain.
  7. compact structure and small turning radius. It can be used for shoveling, loading, transporting and unloading.

SP10 scooptram specification :

Model  SP10
Bucket capacity 1.0CBM
Rated load 1 2T
Operating Weight  7T
Min. turning radius(Outside)  4160mm
Speed 0-9.5KM/h
Forward gear I 0-5; II 0-9.5
Reverse gear I 0-5; II 0-9.5
Grade ability 16 degree
Overal dimension  5700x1300x2020mm
Min. ground clearance  215mm
Wheel base  2242mm
Max dumping height  1230/1700mm
Dumping distance  0930mm
Engine model YTO 4105
Optional engine Cummins4BTA3.9-C80
Rated power 62.5/60KW
Tyre model  09.75-18 or 10.00-20 or 9.00-20
