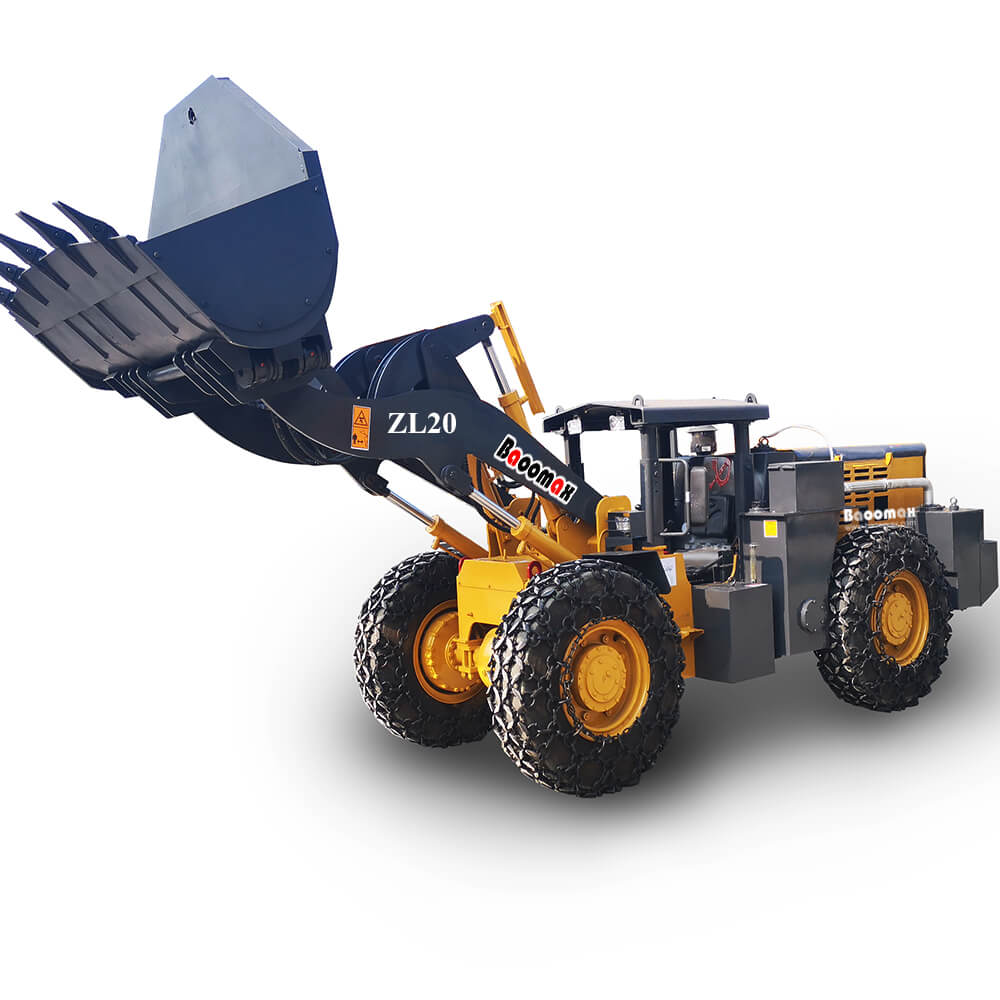

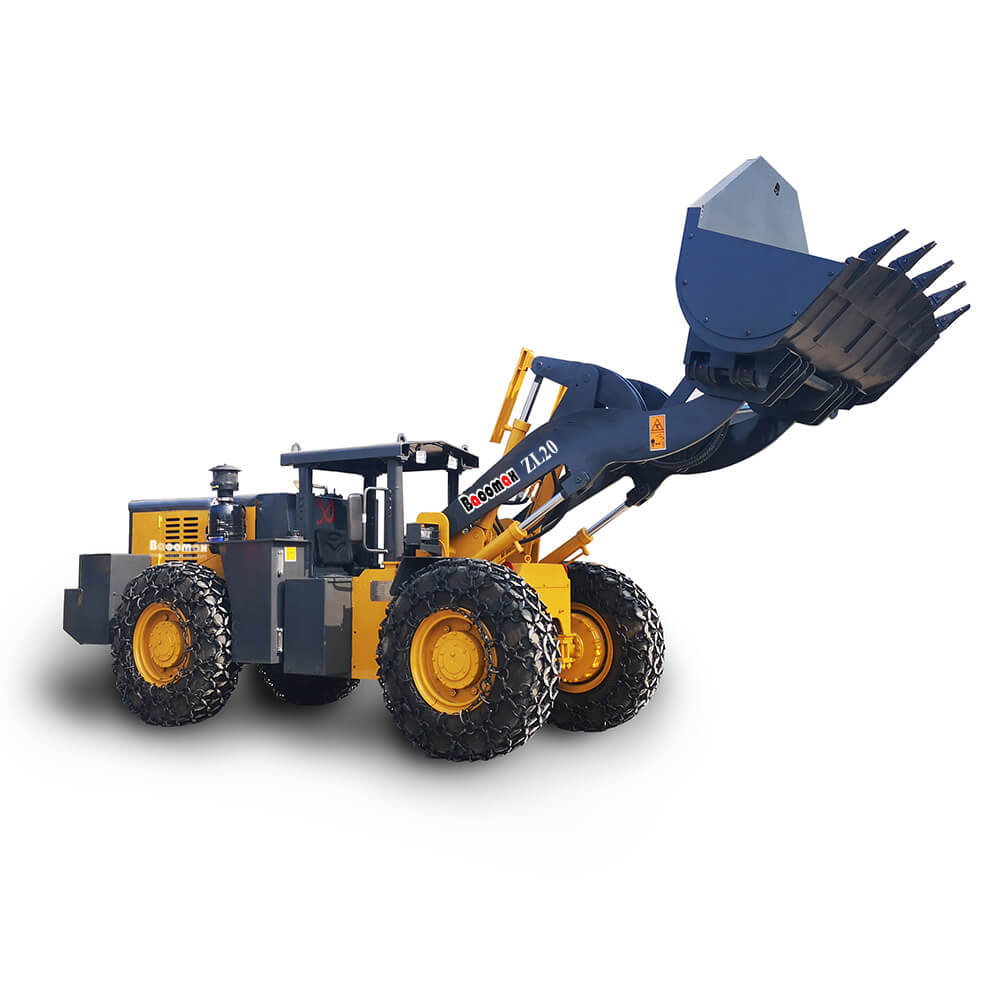

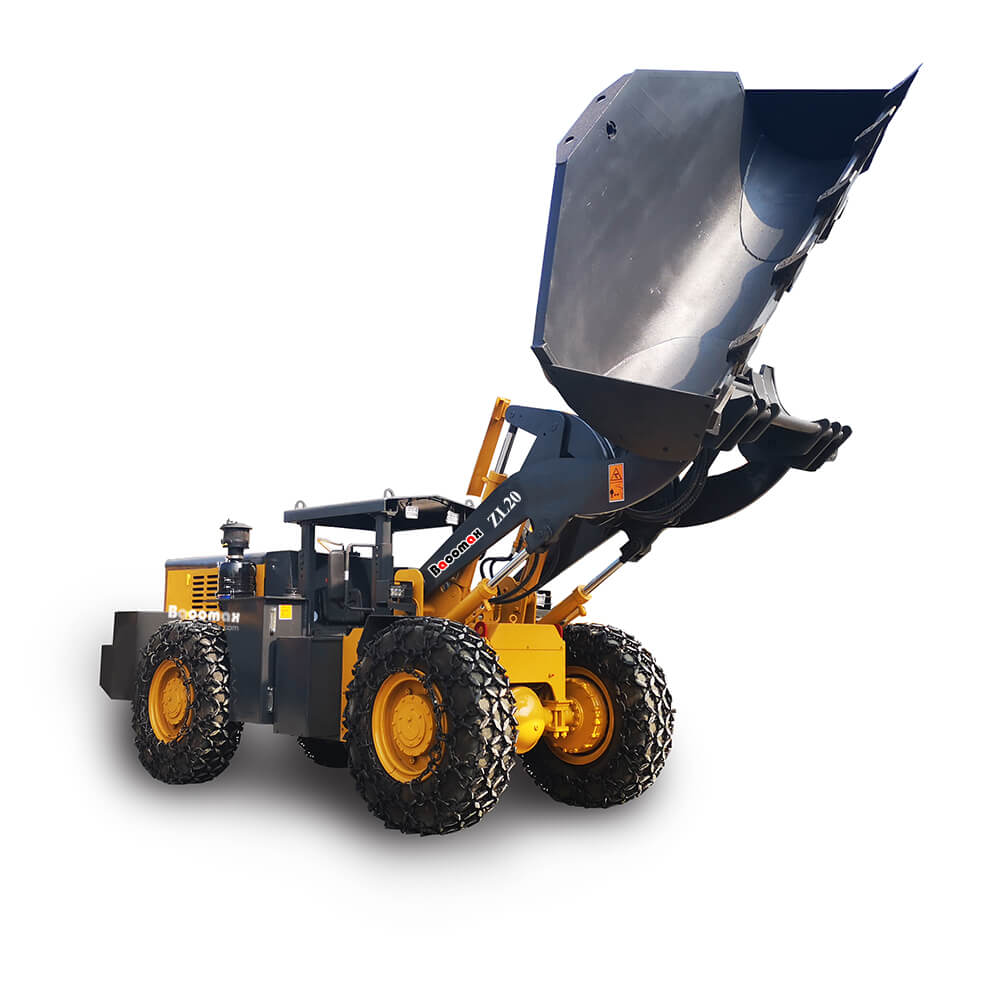

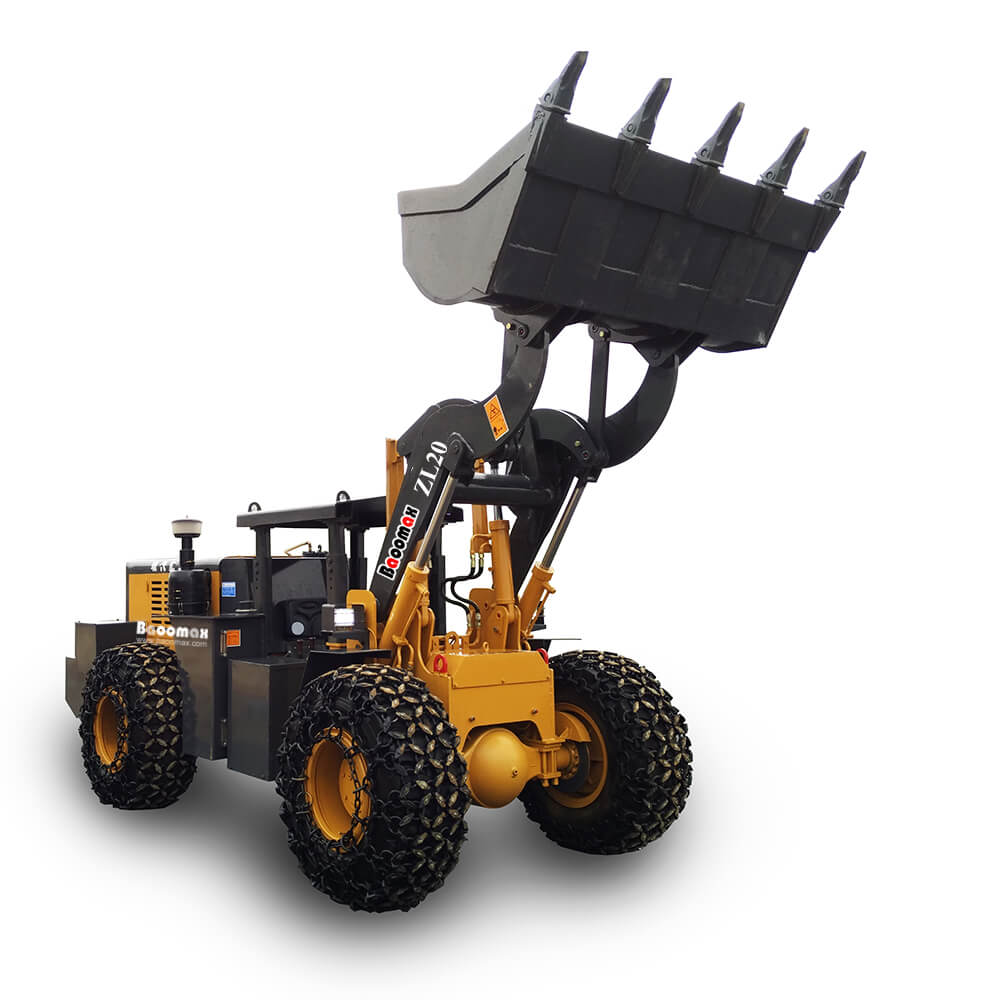

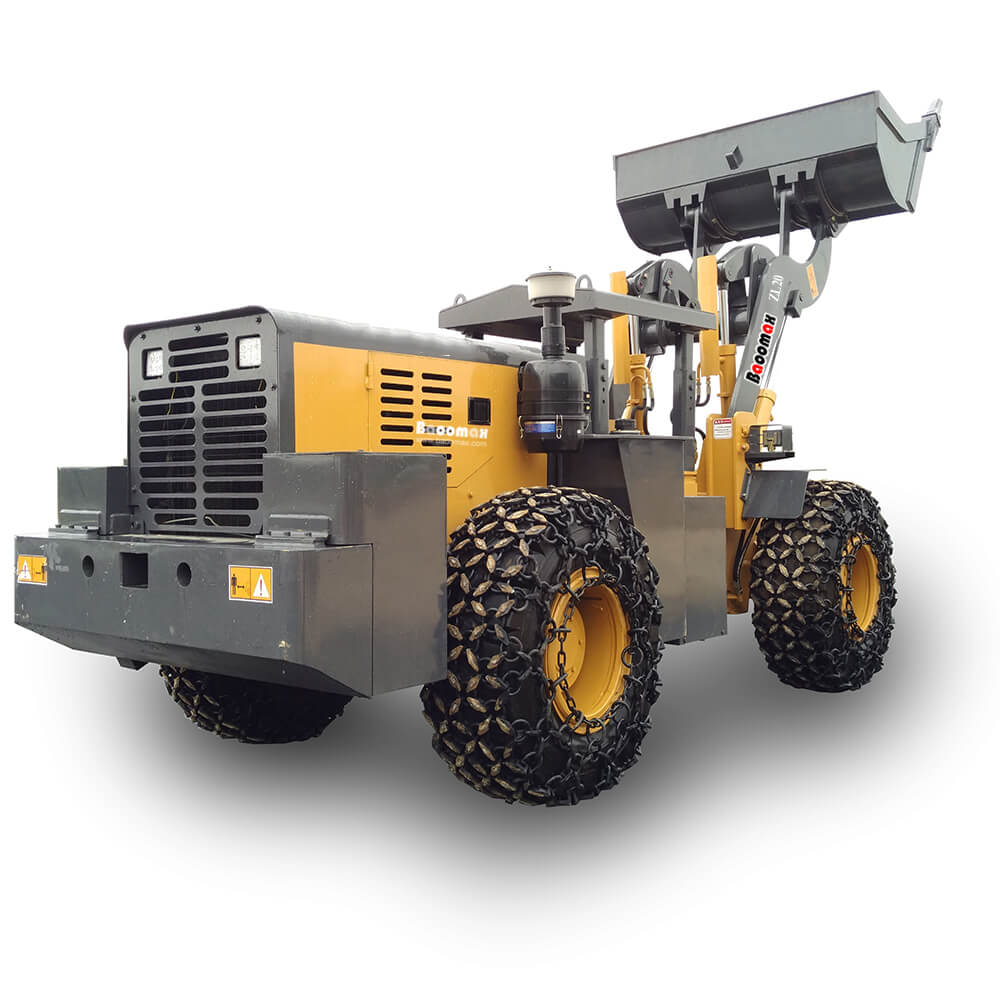

Underground Mine Loader

BAOOMAX Underground mine loader is built with the highest standards of craftsmanship and quality. It is designed to withstand the demanding conditions of underground mining, ensuring durability and long-term reliability.

Also Baoomax mine loader is equipped with a comprehensive range of safety features to protect your operators and ensure a secure working environment.

Product Description

With its powerful engine, optimized powertrain, and advanced hydraulic systems, it delivers outstanding speed, agility, and precision. Whether it’s hauling heavy loads, navigating tight spaces, or maneuvering efficiently, our mine loader outperforms others in its class.

Main features:

  1. Power system adopts top brand YTO engine or CUMMINS/DEUTZ engine with low speed and high torque.
  2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
  3. Operating system adopts pilot control to make operation easily and work efficiently.
  4. Service brake adopts multi-disc wet brake to guarantee its safety and reliability.
  5. Exhaust cleaning system is equipped with  diesel oxidation catalyst (DOC) and water filtration system, greatly reducing air pollution.
  6. Technology leader slewing structure, hydraulic steering, lower failure rate, easy to maintain.
  7. compact structure and small turning radius. It can be used for shoveling, loading, transporting and unloading.

Underground mine loader specification :

Model ZL16  ZL20S  ZL20 ZL35
Bucket capacity  0.6CBM  0.8CBM  1CBM 1.7CBM
Rated load 1 1.6 T 2T 2T  3.5T
Operating Weight 4.7T  5.2T  6.5 T  10T
Speed 0-15KM/h 0-24KM/h 0-13km/h  0-35km
Forward gear I 0- 7; II 0- 15 I 0-5; II 0-13 I 0-9.5; II 0-13  I 0-7 II0-12.5 III0-21

IV:0-35

Reverse gear I 0- 7; II 0- 15 I 0-5; II 0-13 I 0-9.5; II 0-13 I 0-14II0-25
Overal dimension 5110X1600X1900mm  5200x1800x1900mm 6500x1800x1900mm  6760X2000X2550mm
Wheel base 2502mm  2450mm  2450mm 2700mm
Max dumping height 1720/2100mm  1740/2200mm 17400/2200mm  2740mm
Dumping distance 937mm 945mm  945mm 1200mm
Engine model 4102 YTO 4105  YTO4105  YTO6110
Optional engine   Cummins4BTA3.9-C80 Cummins4BTA3.9-C125 YUCHAI 6108
Rated power 76kW 70/60KW 70/60kw 92KW
Tyre model 12-16.5  15/70-189.75-18  or 9.00-20 15/70-189.75-18  or 9.00-20 12.0-24
