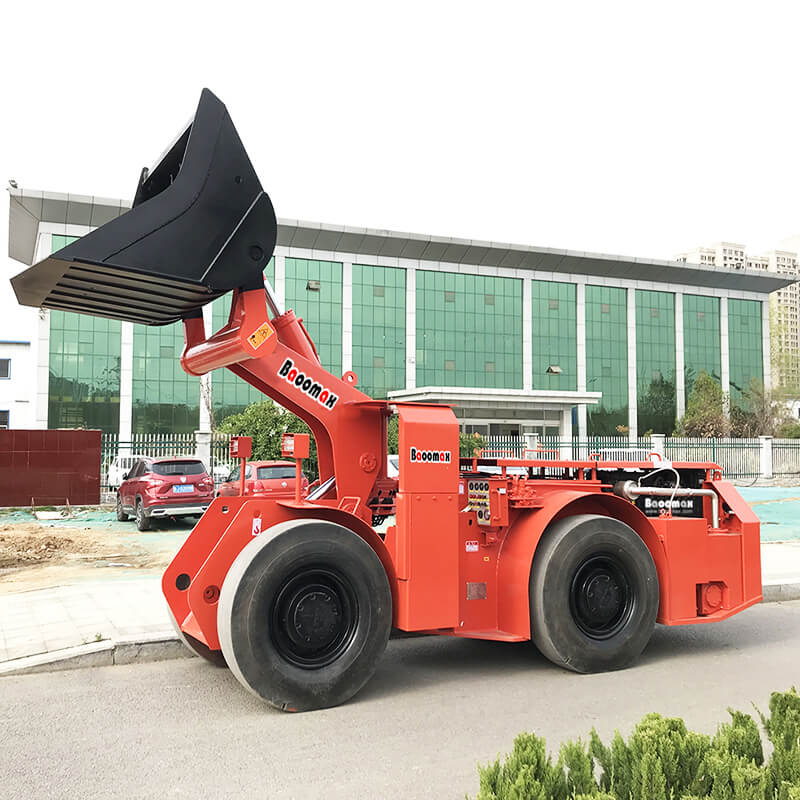

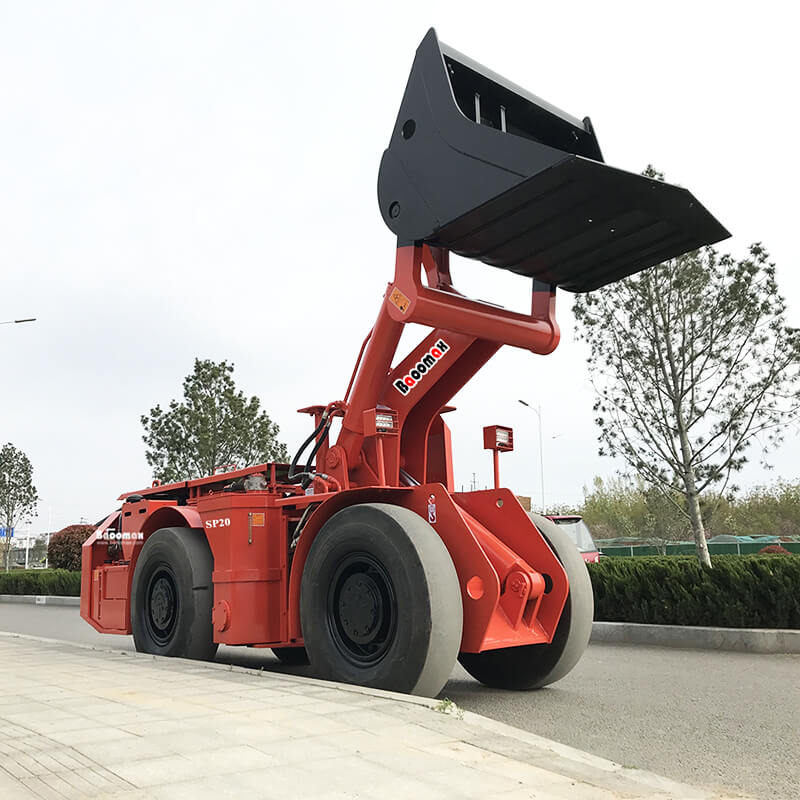

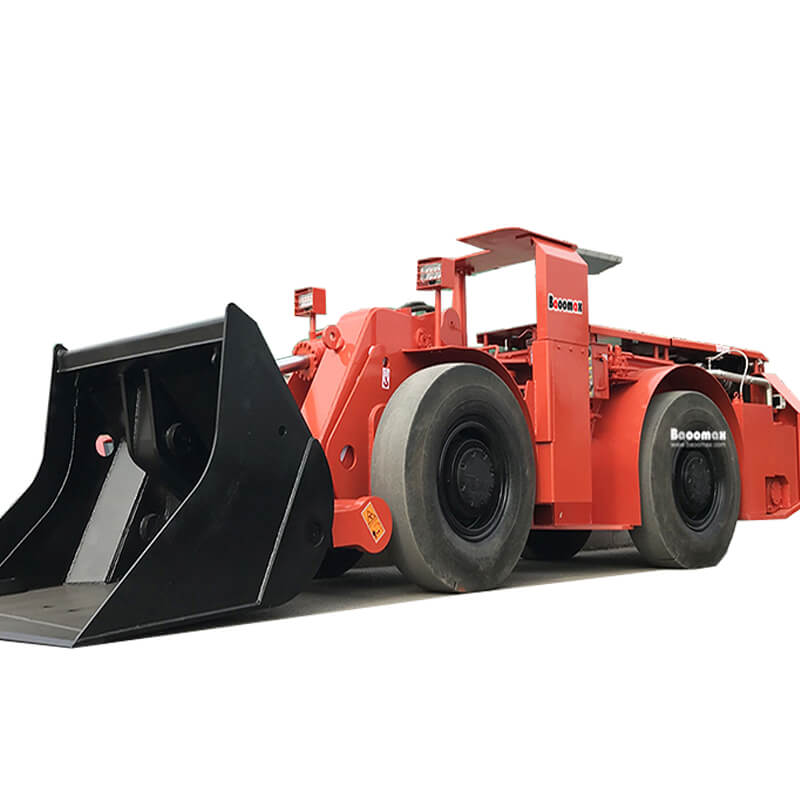

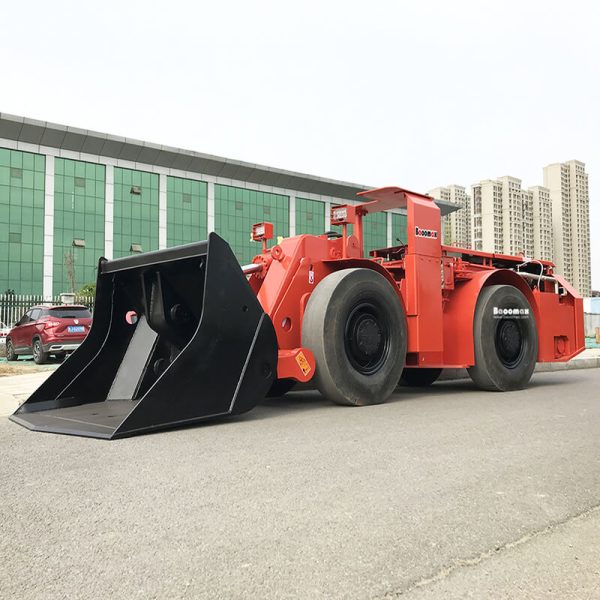

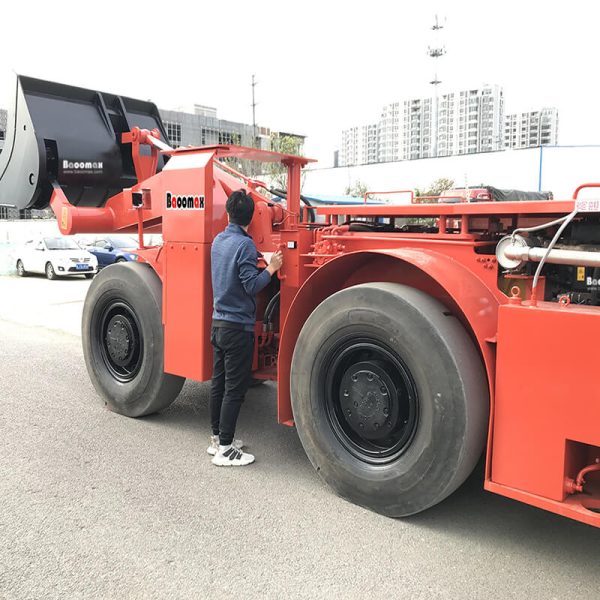

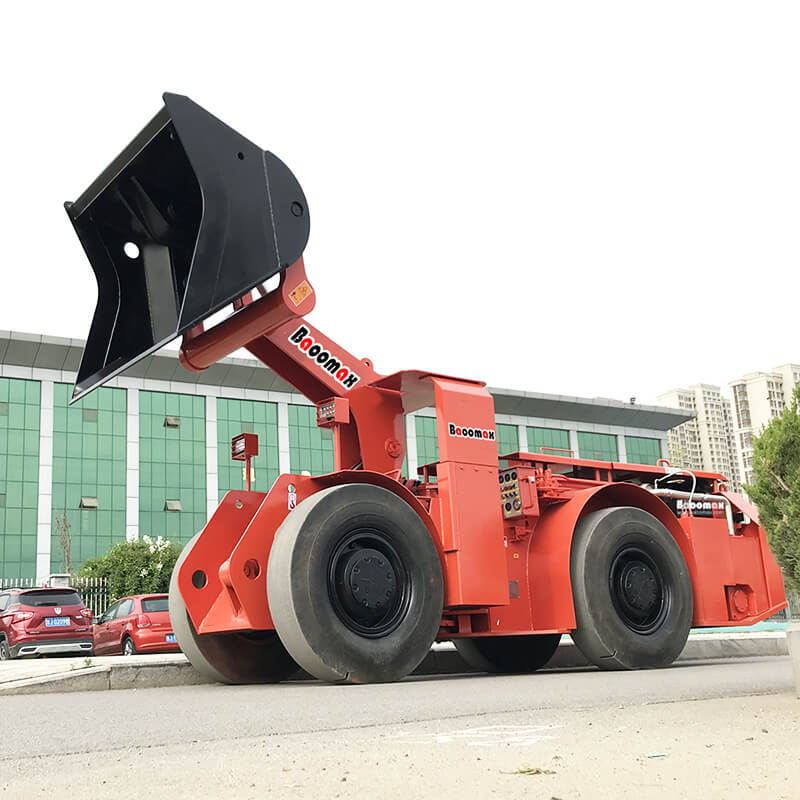

SP30 Underground Scoopram

BAOOMAX Underground scooptram loader, also known as load-haul-dump (LHD) vehicle, it’s heavy-duty machinery used in underground mining operations. Our underground machine mining diesel scooptram loader is built with the highest standards of craftsmanship and quality. It is designed to withstand the demanding conditions of underground mining, ensuring durability and long-term reliability.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Also Baoomax mining equipment scooptram is equipped with a comprehensive range of safety features to protect your operators and ensure a secure working environment.

With its powerful engine, optimized powertrain, and advanced hydraulic systems, it delivers outstanding speed, agility, and precision. Whether it’s hauling heavy loads, navigating tight spaces, or maneuvering efficiently, our diesel scooptram underground mining machines outperforms others in its class.

Main features:

  1. Power system adopts top YUCHAI turbocharged engine or CUMMINS engine with low speed and high torque.
  2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox SHANTUI brand to ensure its stability and high efficiency.
  3. Operating system adopts pilot control to make operation easily and work efficiently.
  4. Service brake adopts multi-disc wet brake technology, parking brake uses spring brake, hydraulic release, and is equipped with an emergency braking system, to guarantee its safety and reliability.
  5. Exhaust cleaning system is equipped with Diesel Oxidation Catalyst (DOC) and water filtration system, greatly reducing air pollution.
  6. compact structure and small turning radius. It can be used for shoveling , loading, transporting and unloading. It is easy to be operated and has high working efficiency.

SP30 scooptram specification :

Model SP30
Bucket capacity 3.0CBM
Rated load 6T
Operating Weight 17.6T
Min. turning radius(Outside) 6800mm
Speed 0-30
Forward gear I0-9  II0-30
Reverse gear 0-12
Grade ability 16°
Overall dimension 8250x2100x2320mm
Min. ground clearance 305
Wheel base 3668
Max dumping height 1870
Dumping distance 1750
Engine model Weichai WP6
Optional engine
Rated power 129KW
Tyre model 17.5-25
