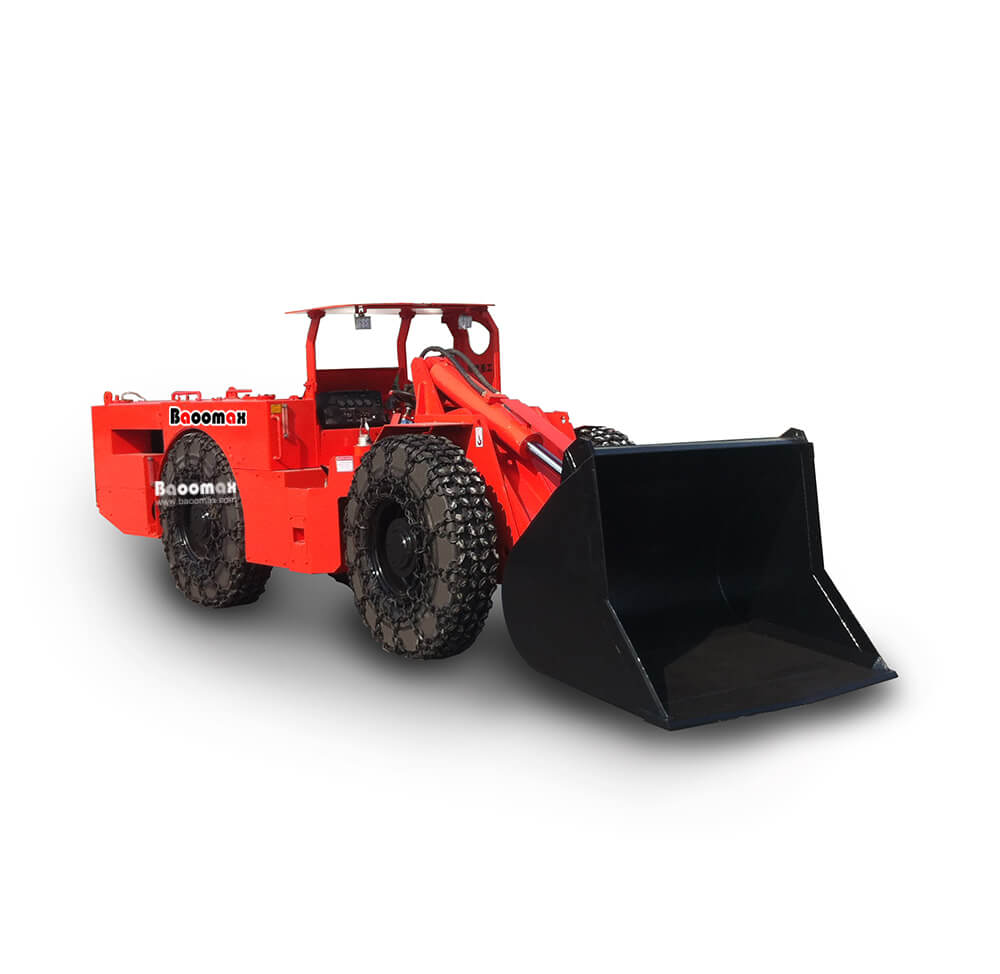

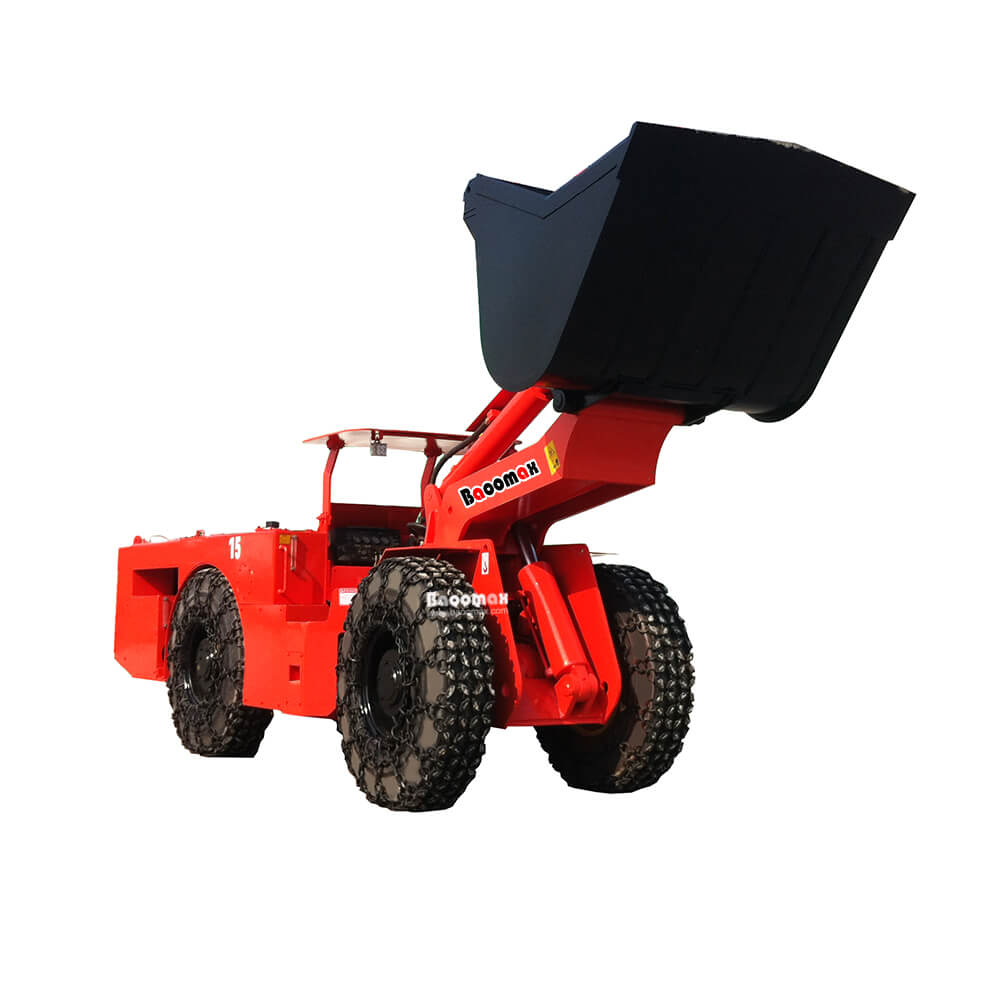

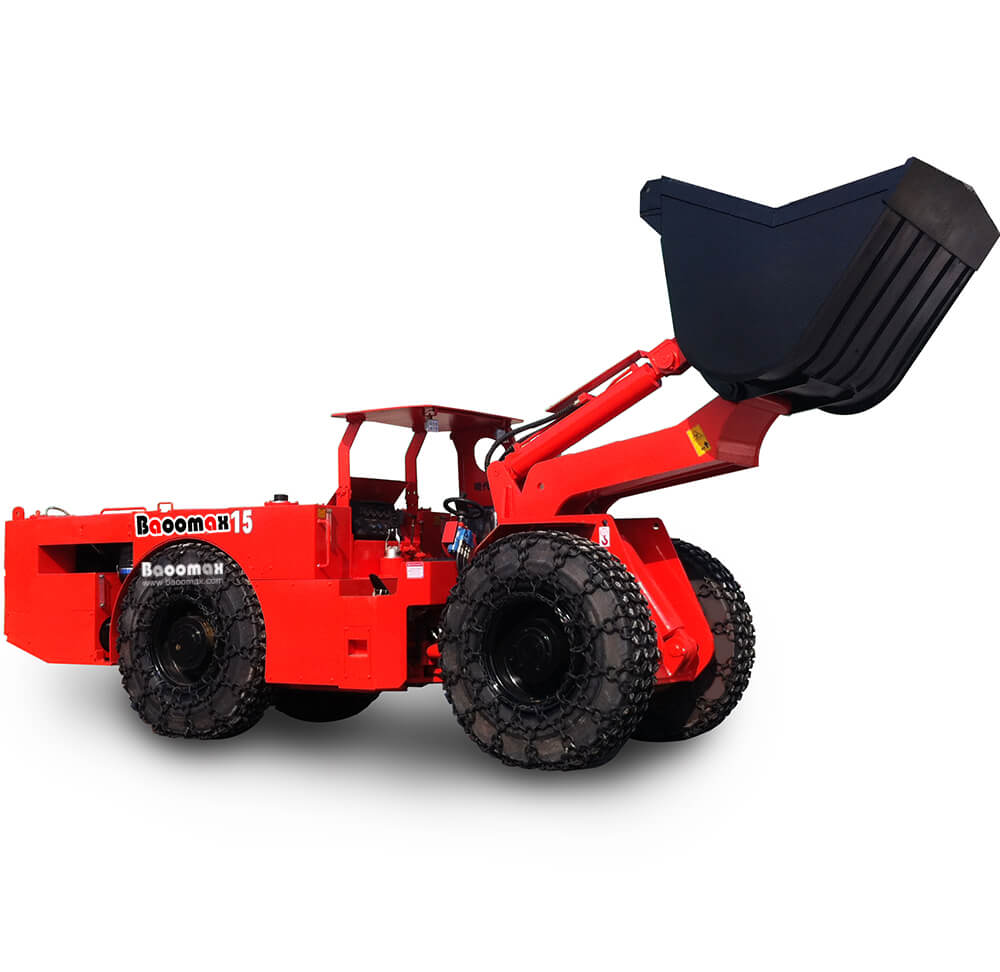

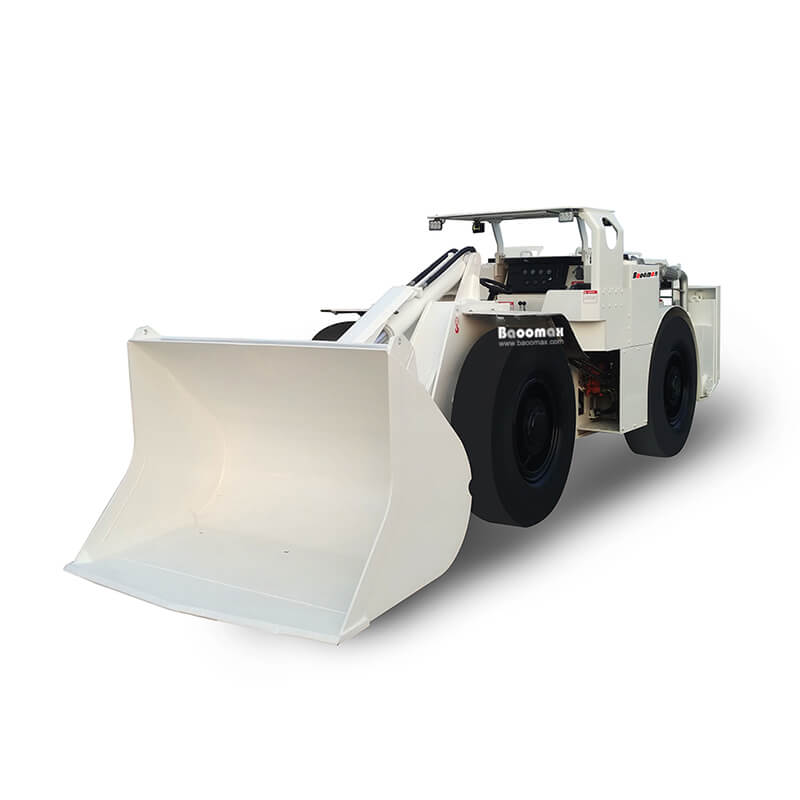

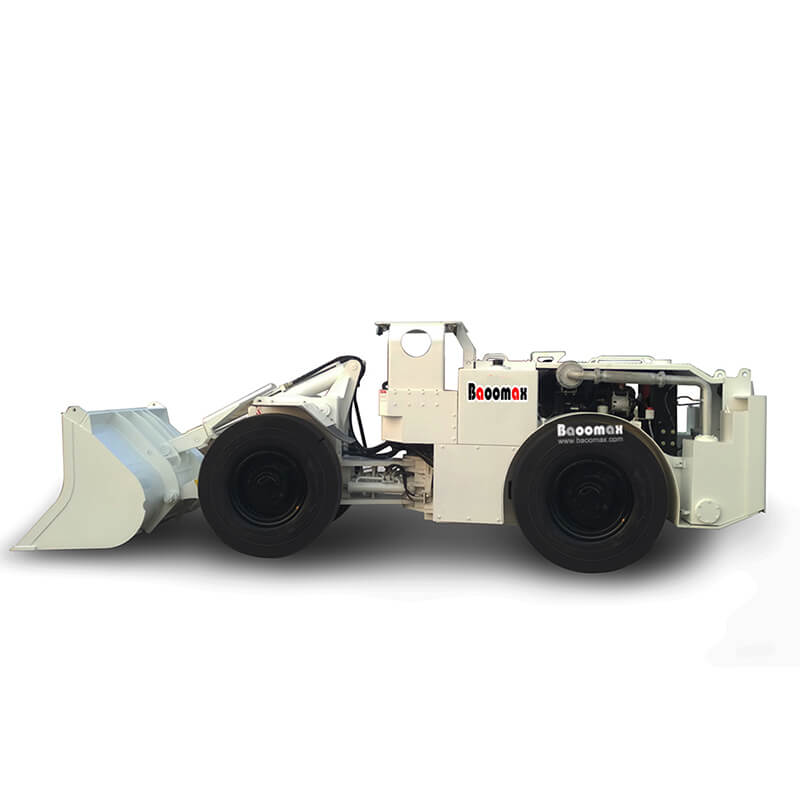

SP15 Underground Scoopram

BAOOMAX Underground scooptram, also known as load-haul-dump (LHD) vehicle, it’s heavy-duty machinery used in underground mining operations. Our scooptram subterráneo 1.5 is built with the highest standards of craftsmanship and quality. It is designed to withstand the demanding conditions of underground mining, ensuring durability and long-term reliability.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Also Baoomax scooptram is equipped with a comprehensive range of safety features to protect your operators and ensure a secure working environment.

With its powerful engine, optimized powertrain, and advanced hydraulic systems, it delivers outstanding speed, agility, and precision. Whether it’s hauling heavy loads, navigating tight spaces, or maneuvering efficiently, our underground diesel scooptram outperforms others in its class.

Main features:

  1. Power system adopts  top brand YTO turbocharged engine or CUMMINS engine with low speed and high torque.
  2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox LIUGONG brand (ZF Germany joint venture) to ensure its stability and high efficiency.
  3. Operating system adopts pilot control to make operation easily and work efficiently.
  4. Service brake adopts multi-disc wet brake to guarantee its safety and reliability.
  5. Exhaust cleaning system is equipped with Diesel oxidation catalyst (DOC) and water filtration system, greatly reducing air pollution.
  6. Technology leader slewing structure, hydraulic steering, lower failure rate, easy to maintain.
  7. Compact structure and small turning radius. It can be used for shoveling, loading, transporting and unloading.

SP15 scooptram specification :

Model  SP15
Bucket capacity  1.5CBM
Rated load 1 3T
Operating Weight  9.5 T
Min. turning radius(Outside) 4780mm
Speed 0-28.5km/h
Forward gear I 0-9.5; II 0-28.5
Reverse gear I 0-12.8
Grade ability 16 degree
Overall dimension 6200x1600x2100mm
Min. ground clearance  290mm
Wheel base  2750mm
Max dumping height 1250/2100mm
Dumping distance  1080mm
Engine model  YTO4110
Optional engine Cummins4BTA3.9-C125
Rated power 81/93kw
Tyre model 12.0-24
