WZ15-10 Backhoe Loader

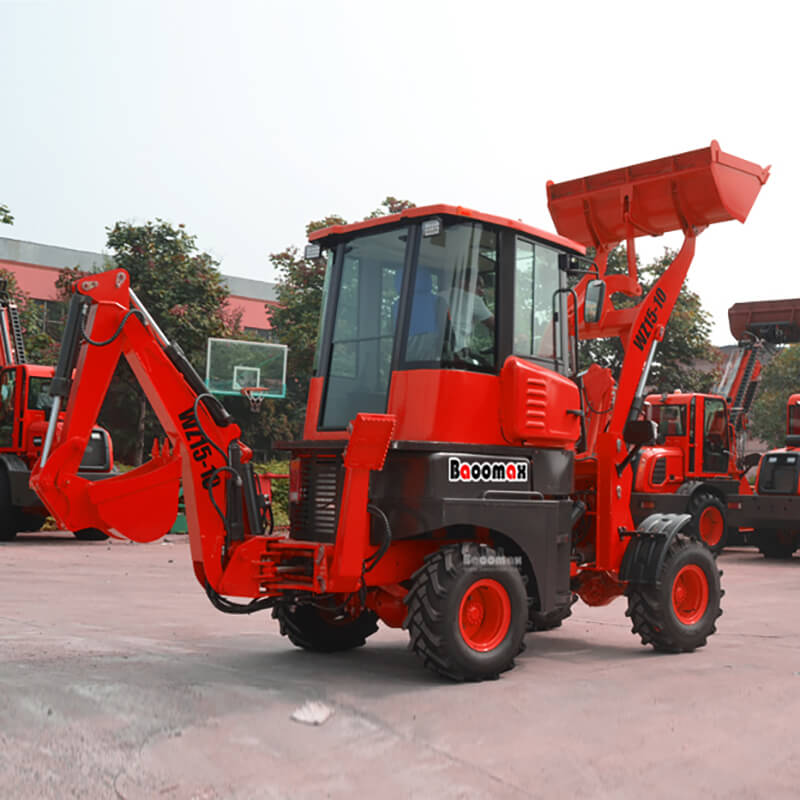

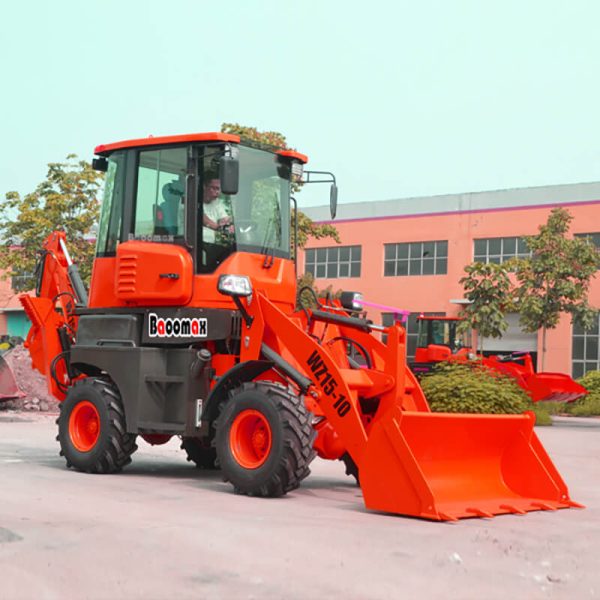

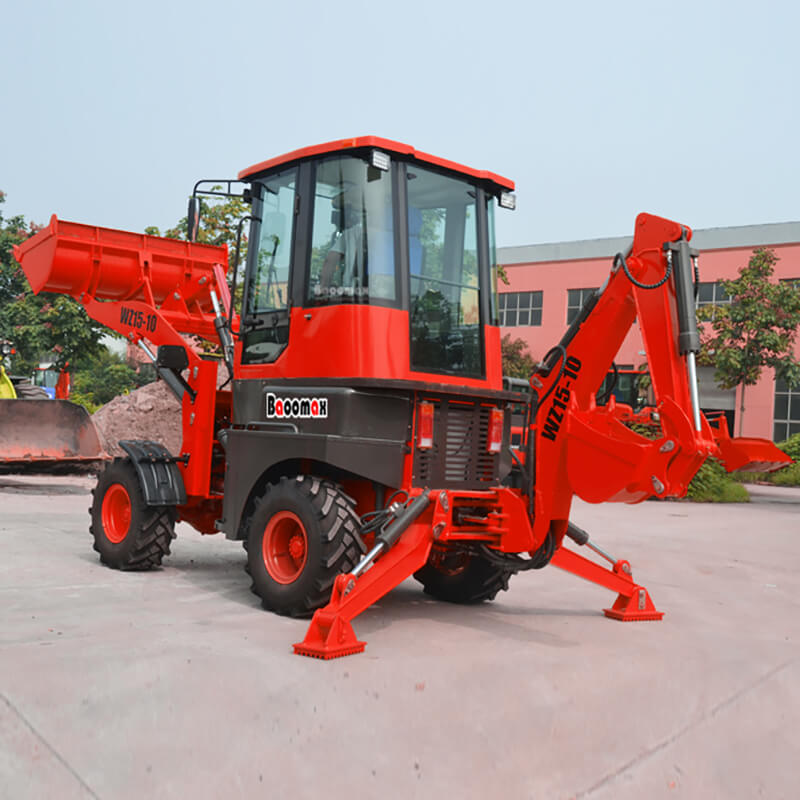

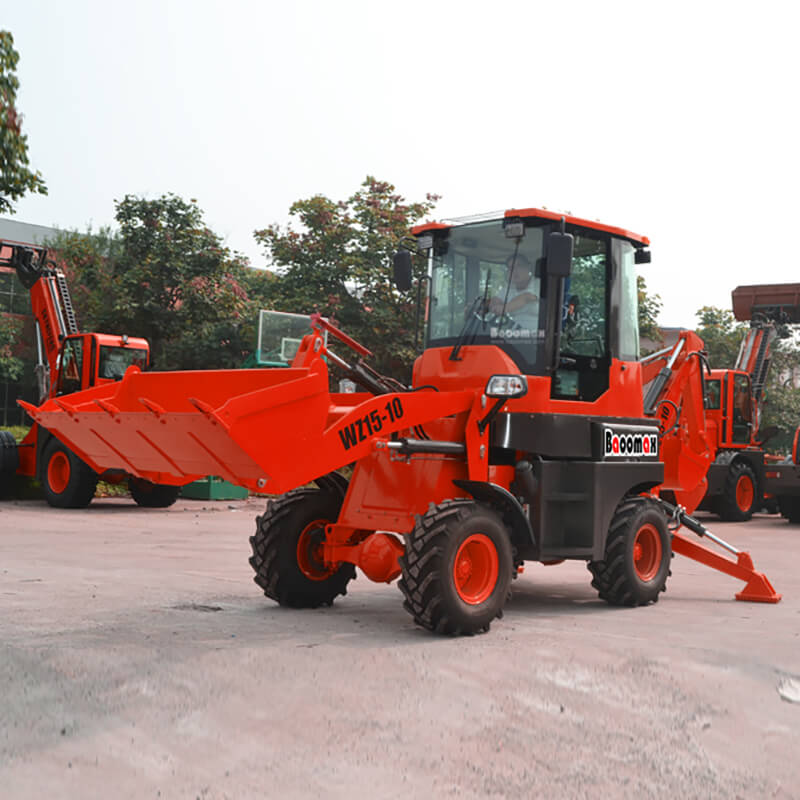

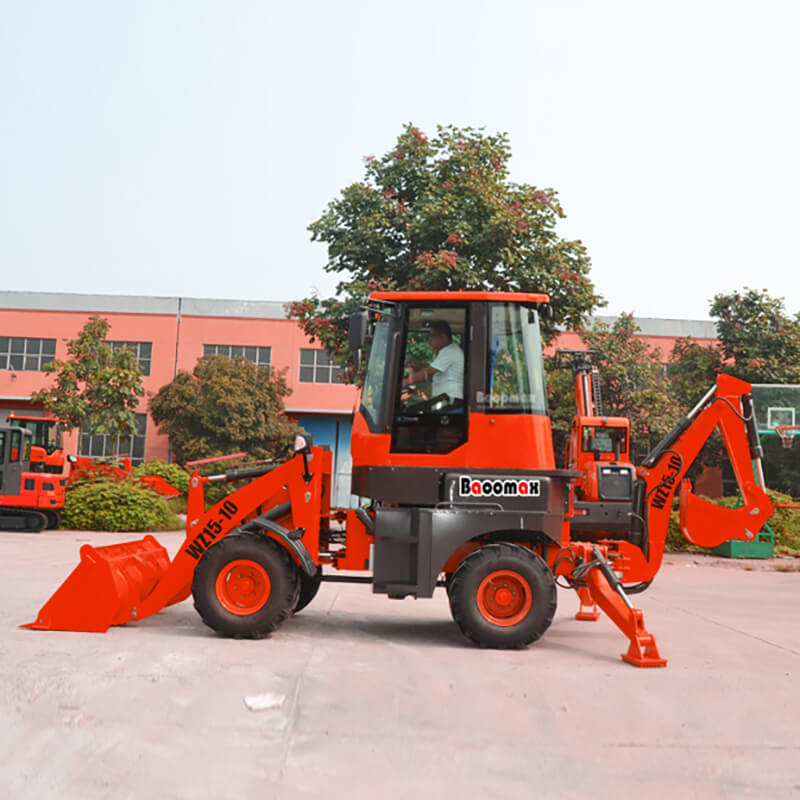

WZ15-10 mini Backhoe loader Overview

The WZ15-10 Backhoe excavator Loader is the ultimate multi-purpose machine that combines the capabilities of a loader and a backhoe. It is designed to tackle a wide range of excavation and construction tasks with ease. Whether you need to dig trenches, load materials, or perform other earth-moving tasks, this backhoe excavator loader 4×4 is equipped to handle it all. Its versatile design makes it a valuable asset on construction sites, landscaping projects, utility maintenance, and more.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Powered by a robust engine, the WZ30-25 mini backhoe loader excavator delivers outstanding performance in every job. With its impressive horsepower and torque, this machine effortlessly tackles challenging terrain and demanding excavation tasks. Experience the power and efficiency that will help you complete your projects faster and more efficiently.

WZ15-10 Backhoe loader specifications:

Overall Dimension:  6400x1850x2880mm
Rated load:  1000kgs
Operate weight:  3800kgs
Bucket width:  1700mm
Bucket capacity:  0.7m³
Dig bucket capacity  0.1m³
Max. dumping height  2350mm or 2700mm or customized
Max. digging depth  2000mm or 2500mm or customized
Dumping distance  1050mm
Model: YUNNEI YN27 engine
Rated power  42KW
Pattern:  In-line, water-cooling, 4 stroke, direct inject
Optional model:  XINCHAI/YANMAR/CUMMINS engine
Storage Battery  80 A free-maintenance
Gearbox model:  Mechanical or hydraulic
Axle:  Isuzu drive axle(drum brake)
Drive model:  Four wheel drive
Steering angle  ±35°
Min. Turning Radius:  4500mm
Pattern:  Articulated type full-hydraulic power steering
Service brake  Drum brake(Expanding shoe brakes)
Parking brake:  Hand operate,disc brake
Model:  14/90-16
Optional model  12-16.5 or 14-17.5 wider tire

31*15.5-15 wider tire
