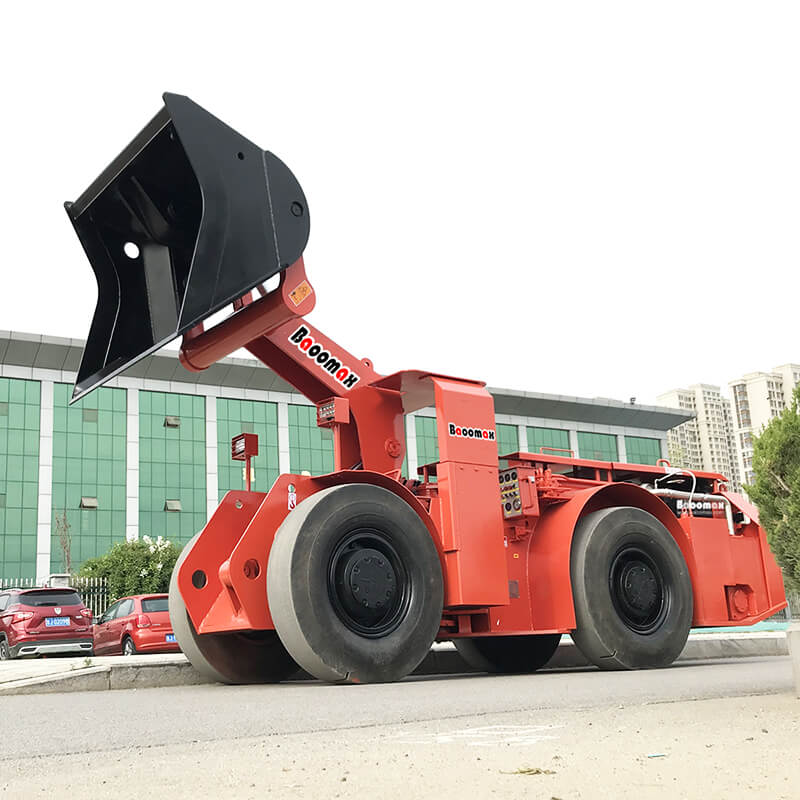

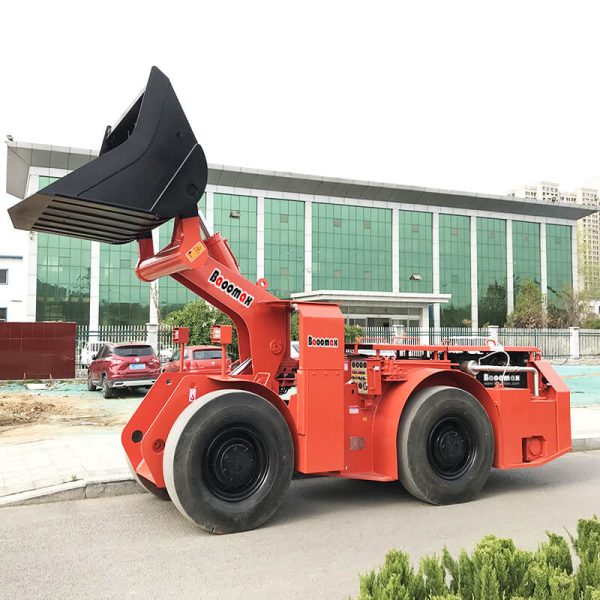

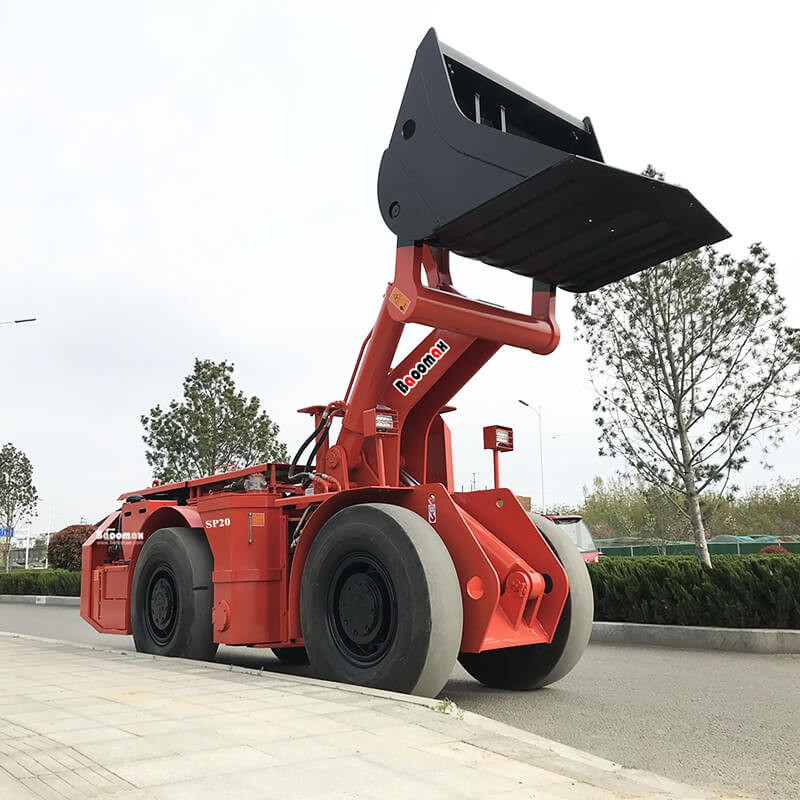

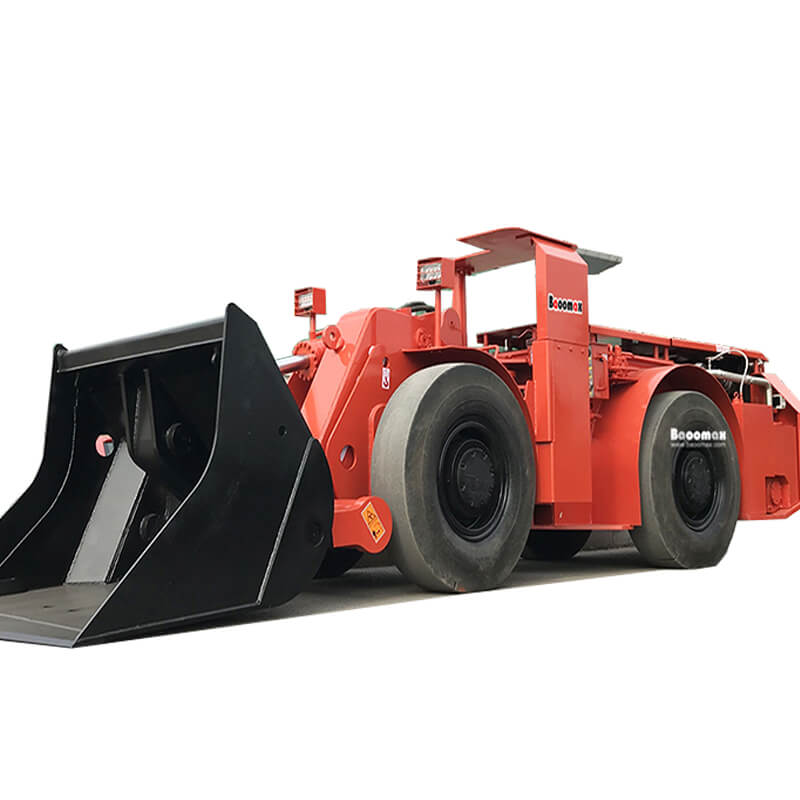

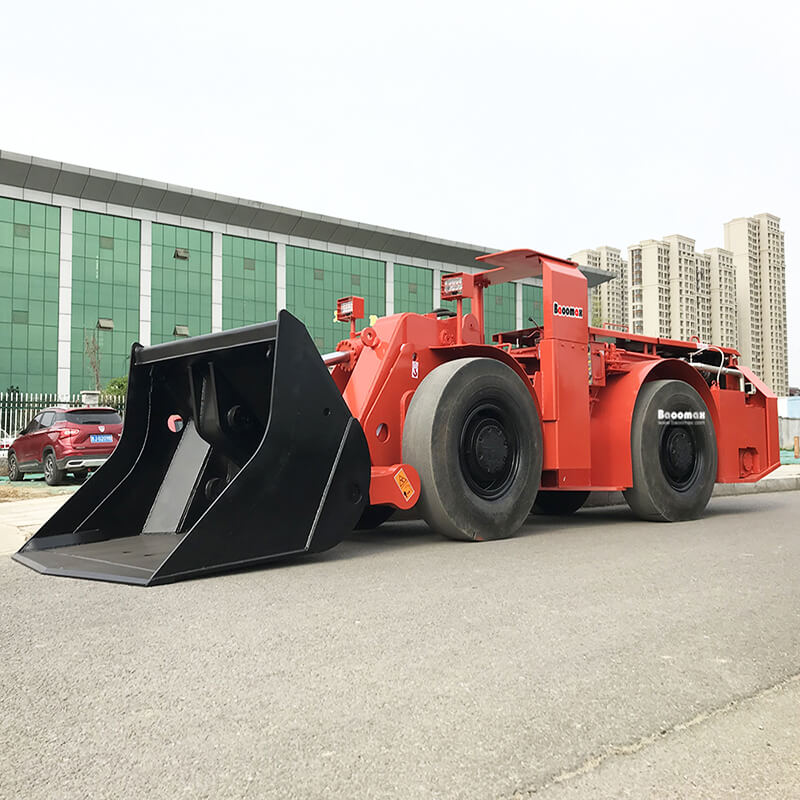

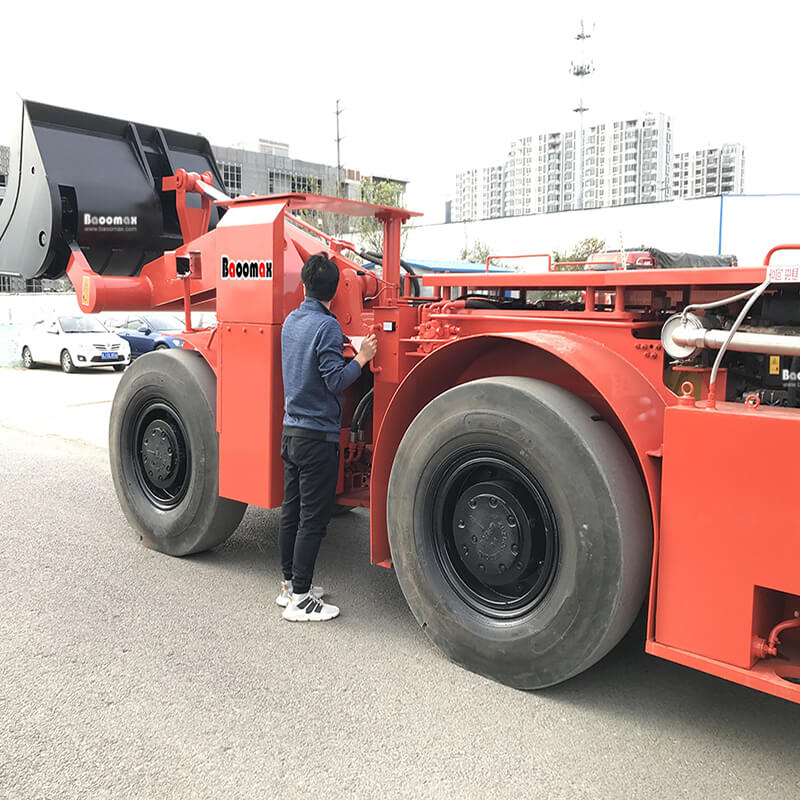

SP20 Underground Scoopram

BAOOMAX Underground scooptram, also known as load-haul-dump (LHD) vehicle, it’s heavy-duty machinery used in underground mining operations. Our scooptram 2 yardas mining machine is built with the highest standards of craftsmanship and quality. It is designed to withstand the demanding conditions of underground mining, ensuring durability and long-term reliability.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Also Baoomax LHD diesel scooptram is equipped with a comprehensive range of safety features to protect your operators and ensure a secure working environment.

With its powerful engine, optimized powertrain, and advanced hydraulic systems, it delivers outstanding speed, agility, and precision. Whether it’s hauling heavy loads, navigating tight spaces, or maneuvering efficiently, our underground diesel scooptram outperforms others in its class.\

Main features:

  1. Power system adopts top brand YTO turbocharged engine or CUMMINS engine with low speed and high torque.
  2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox SHANTUI brand to ensure its stability and high efficiency.
  3. Operating system adopts pilot control to make operation easily and work efficiently.
  4. Service brake adopts multi-disc wet brake technology, parking brake uses spring brake, hydraulic release, and is equipped with an emergency braking system, to guarantee its safety and reliability.
  5. Exhaust cleaning system is equipped with Diesel Oxidation Catalyst (DOC) and water filtration system, greatly reducing air pollution.
  6. compact structure and small turning radius. It can be used for shoveling , loading, transporting and unloading. It is easy to be operated and has high working efficiency.

SP20 scooptram specification :

Model SP20
Bucket capacity 2.0CBM
Rated load 1  4T
Operating Weight  12.06T
Min. turning radius(Outside)  5550mm
Speed  0-12km
Forward gear  I 0-4 II0-8 III0-12
Reverse gear I 0-4 II0-8 III0-12
Grade ability  16 degree
Overall dimension  7140X1800X2040mm
Min. ground clearance 215mm
Wheel base 2615mm
Max dumping height  1985mm
Dumping distance 730mm
Engine model  YTO4110
Optional engine Cummins4BTA3.9-C125
Rated power 81/93KW
Tyre model 12.0-24
