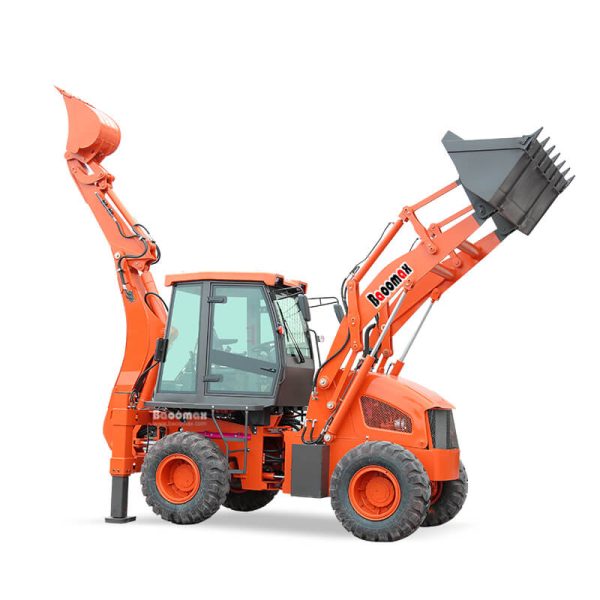

WZ30-25 Backhoe Loader

WZ30-25 Backhoe loader Overview

The WZ30-25 Backhoe Loader 4×4 is the ultimate multi-purpose machine that combines the capabilities of a loader and a backhoe. It is designed to tackle a wide range of excavation and construction tasks with ease. Whether you need to dig trenches, load materials, or perform other earth-moving tasks, this backhoe loader is equipped to handle it all. Its versatile design makes it a valuable asset on construction sites, landscaping projects, utility maintenance, and more.

Product Description

Powered by a robust engine, the WZ30-254×4 compact tractor with loader and  Backhoe delivers outstanding performance in every job. With its impressive horsepower and torque, this machine effortlessly tackles challenging terrain and demanding excavation tasks. Experience the power and efficiency that will help you complete your projects faster and more efficiently.

WZ30-25 Backhoe loader specifications:

Operating weight 7640KG
Dimension(L*W*H) 5910x2268x3760mm
Wheel base 2250mm
Mini Ground Clearance 300mm
Bucket Capacity 1.0cbm
Breakout Froce 38kN
Rated load 2500kg
Bucket Dumping Height 2742mm
Bucket Digging Depth 52mm
Backhoe Capacity 0.3cbm
Max. Digging Depth 4082mm
Max. Pulling Force 39kN
Engine Model  Yuchai Diesel
Rated Power 75kw
Engine Rated Speed 2400 r/min
Engine Max. Torque ≥261.7N.M/1800 r/min
Engine Displacement 4.4L
Model of Steering Device BZZ5-250
Steering Angle ±36°
Min. Turning Radius 5018mm
Pressure of the System 12MPa
Axle Feicheng Axle Factory
Main Transmission Type Double Reduction
Final Reducer Single Stage Final Reducer
Torque Converter YJ280 Single-stage Three Elements
Gearbox Fixed shaft power transmission
Gears F2/R2
Max.Speed 22km/h
Tyre Model 16/70-20
Service Brake Air over Oil Caliper Brake;External Type; Self-regulation;Self-balance
Park Brake Operation Power Implementing brak;Manual Operation Power Terminating Brake
Digging Power of Excavator Grab 46.5kN
Digging Power of Dipper 31kN
Bucket Lifting Time 5.4s
Bucket Lowering Time 3.1s
Bucket Discharge Time 2.0s
