Container Crane

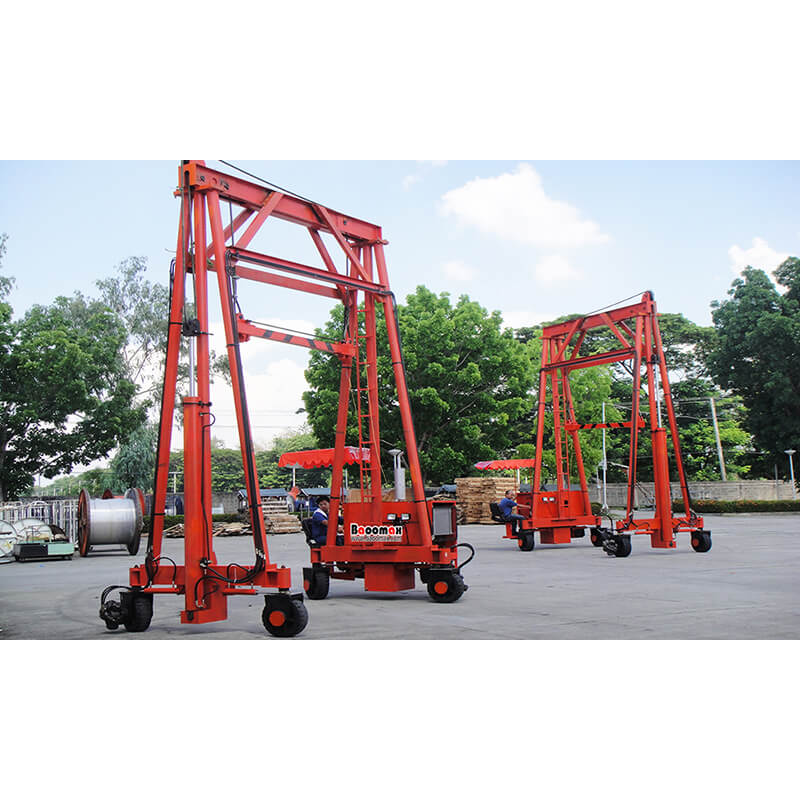

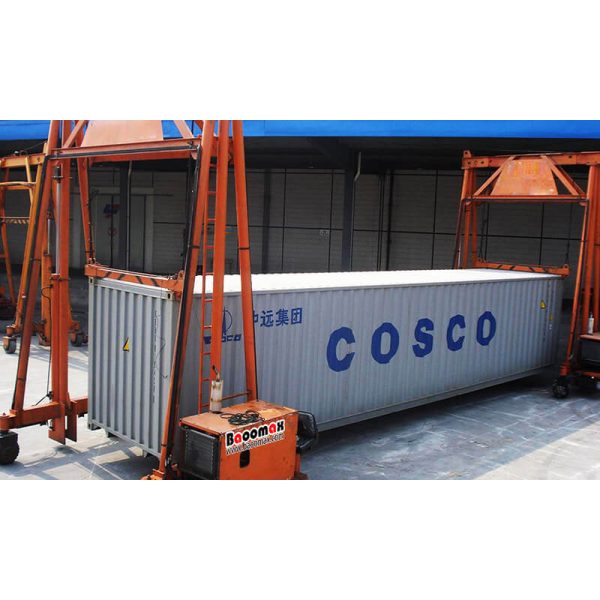

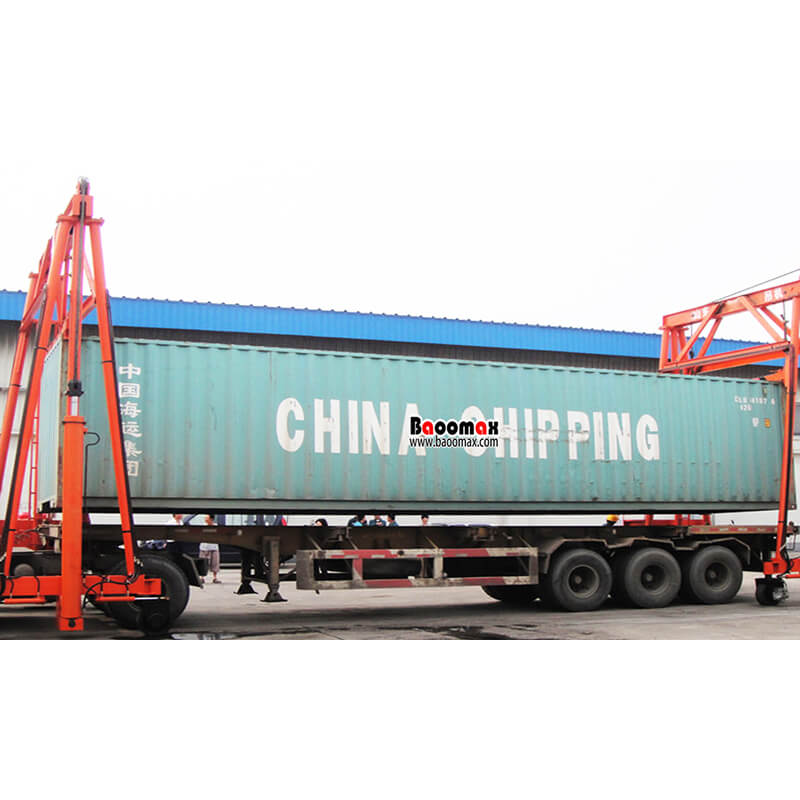

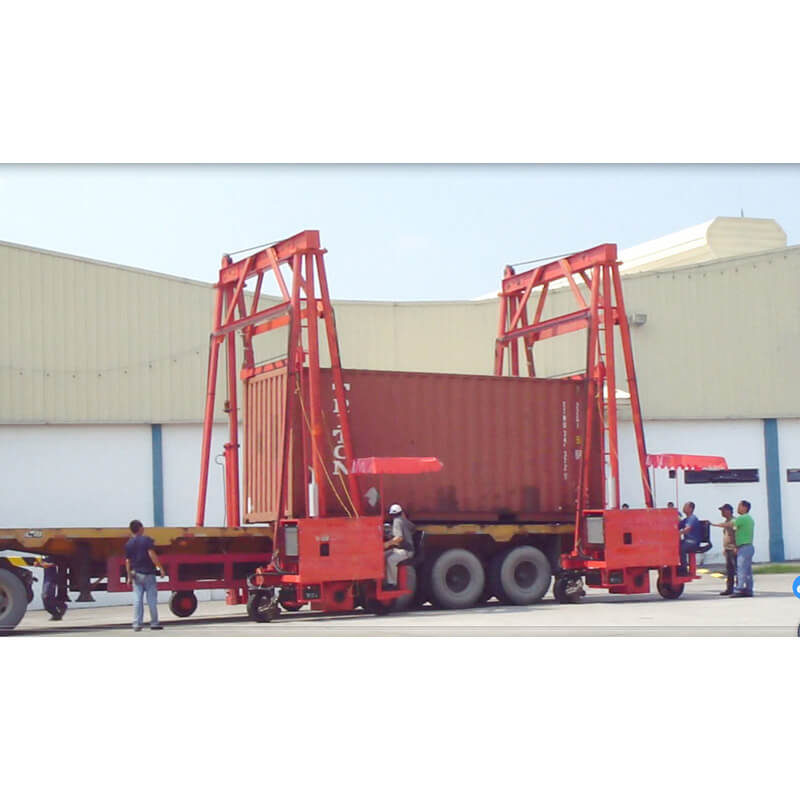

Baoomax 40Ton and 60Ton Mobile port Container Crane is engineered to excel in fast-paced container terminals, ports, and inter modal facilities. With its sturdy structure, reinforced components, and high-performance features, it ensures reliable operation and exceptional durability, even in demanding working conditions. This container quay crane truck is built to withstand the rigors of heavy-duty container handling, ensuring continuous productivity and minimizing downtime.

Product Description

At the heart of the 40Ton and 60Ton Mobile shipping Container gantry Crane lies a powerful hydraulic system and state-of-the-art lifting mechanisms. Its advanced hydraulic jib and boom systems, coupled with a sophisticated control system, enable precise movements and smooth operation. With exceptional lifting capacity, this container loading lifting crane effortlessly handles containers of varying sizes and weights, enabling efficient loading, unloading, and stacking operations.

Container Crane specification

1 Model   CC40T CC60T
2 Rated capacity kg 40tons 60tons
3 Overall length mm 4900 4900
4 Overall width mm 2550 2550
5 Overall height mm 6500 6500
6 Max. Lifting height mm 1980 1980
7 Max. Lifting Speed m/s 0.03 0.03
8 Total weight kg 9800 11500
9 Engine model   Xinchai 490BPG Xinchai 490BPG
10 Power kw 36.8 36.8
11 Rated speed rpm 2650 2650
12 Displacement L 2.67 2.67
13 No. of cylinder   4 4
14 Max torque n*m ≥148 ≥148
15 Rotate speed r/min 1800-1900 1800-1900
16 Max travel speed km/h 1.5 1.5
17 Diameter of lifting cylinder mm 203 232
18 Diameter of steering cylinder mm 75 75
19 Torque of hydraulic motor N*m 1633 1755
20 Rotate of hydraulic motor r/min 4-400 250
21 Diameter of drive wheel mm 550 600
22 Min under-clearance mm 55 102
