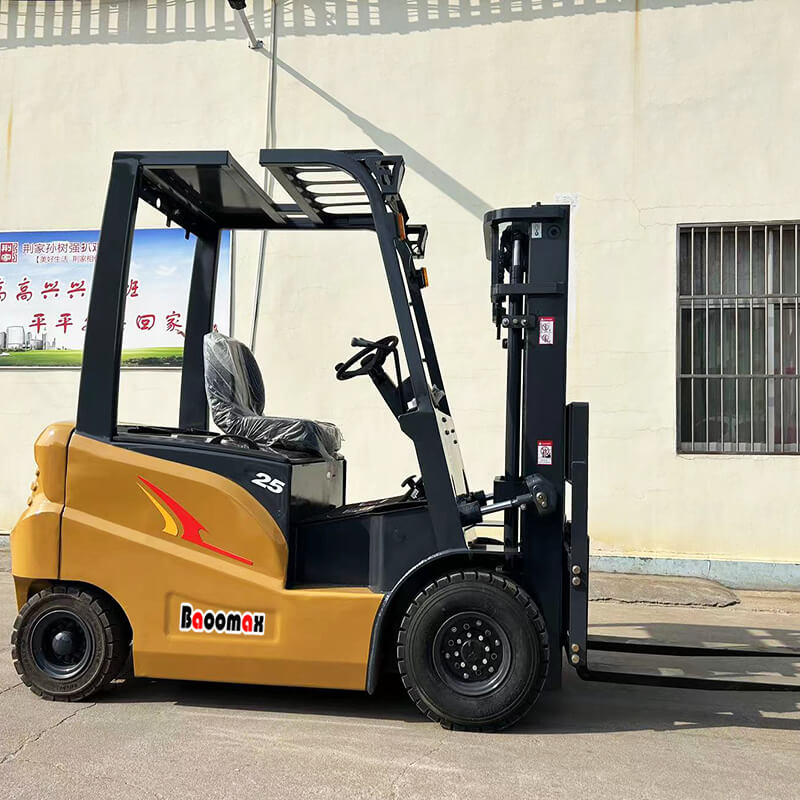

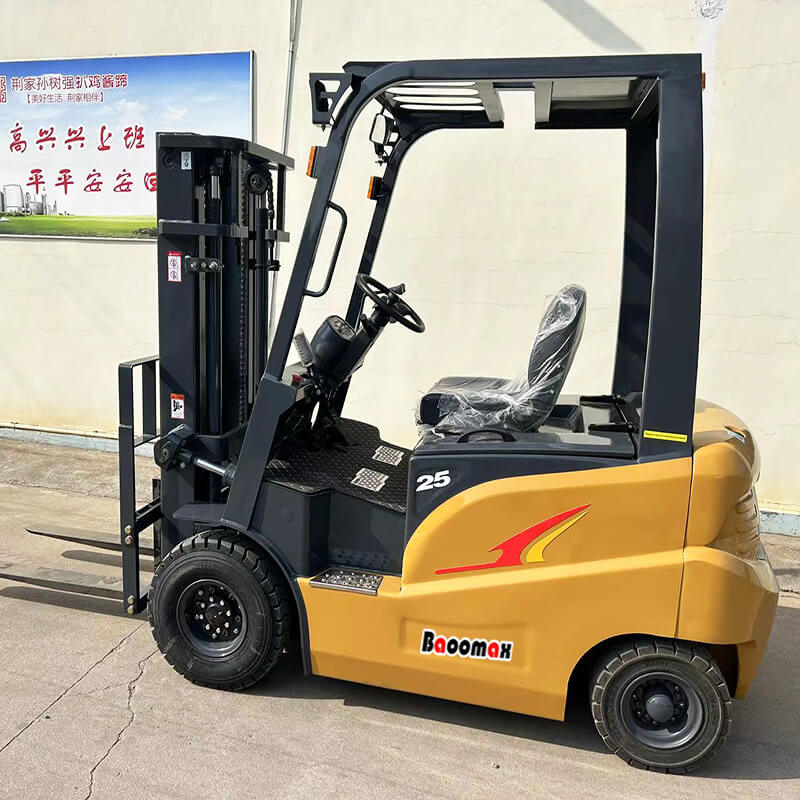

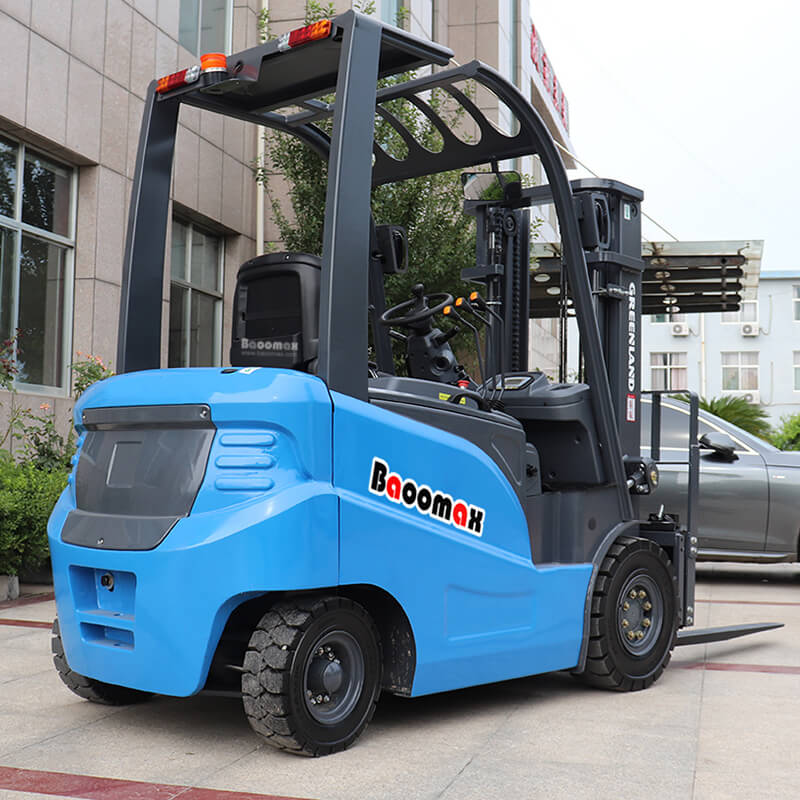

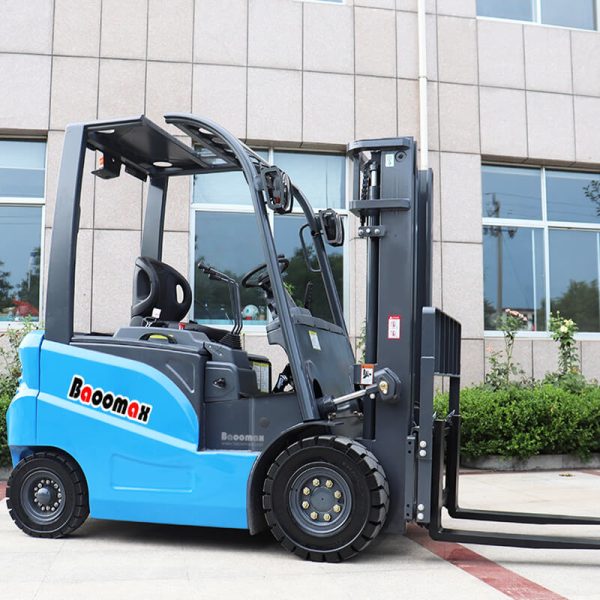

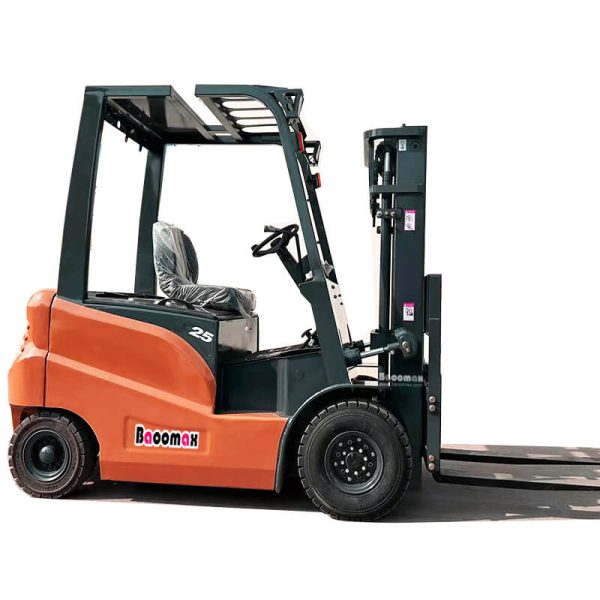

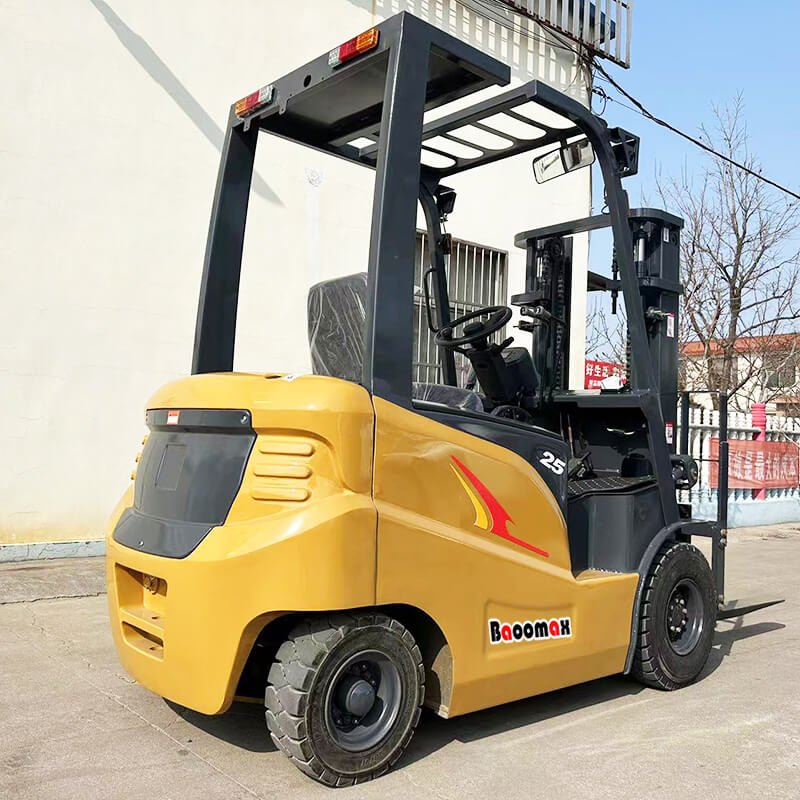

2 Ton and 2.5 Ton Electric Forklift

2ton and 2.5Ton electric forklift overview

Baoomax 2ton Electric Forklift truck is an embodiment of sustainable power. Its cutting-edge electric motor, powered by rechargeable batteries( lead-acid battery or lithium battery ), offers a clean and efficient alternative to traditional fuel-powered forklifts. By eliminating emissions and reducing noise pollution, the Electric Forklift provides a greener solution without compromising on power or productivity.

Product Description

With its sleek and compact design, Baoomax Electric Forklift excels in maneuverability, making it an ideal choice for navigating narrow aisles and confined spaces.By eliminating the noise associated with traditional combustion engines, it creates a quieter work environment, reducing distractions and enhancing communication among operators and workers.  Also electric Forklift’s energy efficiency is a key advantage for businesses seeking to reduce operational costs .

2 Ton and 2.5 Ton Electric Forklift  specification

Model FL20EF FL25EF
Power type Battery Battery
Rated load (KG) 2000 2500
Load center distance(mm) 500 500
Driving type Seat Seat
Length With fork       L1 (mm) 3120 3380
length   Without fork    L2(mm) 2050 2310
Whole Width       B(mm) 1050 1150
Height no lifting frame   H1(mm) 2000 2000
Top frame height   H2(mm) 2000 2145
Max Height     working    H3(mm) 3850 3995
Distance from seat to top light   L3(mm) 1020 1020
Wheel  base    L4(mm) 1400 1515
  Front overhang         Y(mm) 320 483
 Back overhang         L5(mm) 330 400
Front wheel tread        R(mm) 880 970
Back wheel tread      P(mm) 830 950
Min Floor clearance             F(mm) 100 135
Max lifting height            H(mm) 3000 3000
Free lifting height              H4(mm) 80 170
Fork  changing             S(mm) 925/200 1024/200
Min Turning radius          WA(mm) 1950 2050
Min Right angle aisle width    RA(mm) 3400 3760
Frame angle   a/β 6°/12° 6°/12°
Max lifting speed without goods(mm/s) 350 380
Max lifting speed with full  goods(mm/s) 300 280
Max speed without goods(km/h) 15 15
Max speed with full goods(km/h) 14 14
Max climbing angle(%) ≤10 ≤15
Whole weight (kg) 4050kg 4200
Driving Wheel 2x/2 2x/2
Tyre model Solid tyre Solid tyre
Front Tyre 18*7 -10 7.00-12
Rear Tyre 18*6-8 18×7-8
Hand Brake Hydraulic Pedal Hydraulic Pedal
Brake  type M-Hand M-Hand
 Battery Volt/ capacity(v/Ah) 48/300 48/400
Driving motor power (kw) 7.5AC 11.0AC
pump power (kw) 10AC 12.0AC
