3 Ton and 3.5 Ton Diesel Forklift

Baoomax 3ton and 3.5ton Diesel Forklifts truck are built to conquer the challenges of industrial environments with ease. Its solid frame, reinforced components, and rugged design ensure exceptional durability and longevity, making it the ideal choice for demanding applications in warehouses, distribution centers, manufacturing facilities, and more.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Equipped with advanced power systems, Baoomax new Diesel counterbalance Forklift  truck offers smooth and responsive control for accurate maneuverability. The 3ton diesel forklift truck intuitive controls and ergonomic design empower operators to navigate confined spaces, narrow aisles, and congested areas with ease, ensuring optimal productivity and safety. The 3ton diesel forklift’s precise steering and responsive braking systems enable seamless operation, contributing to enhanced efficiency and minimizing the risk of accidents or damage.

3 Ton and 3.5 Ton Diesel Forklift specification

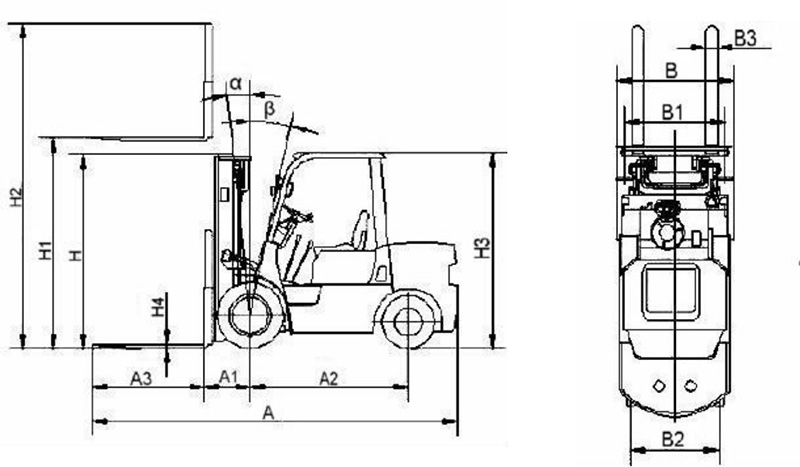

3 Ton and 3.5 Ton Diesel Forklift specification 01

Model FL30DF FL35DF
Load capacity 3000 kg 3500 kg
Load center 500 mm 500 mm
Power type Diesel Diesel
Max. lifting speeds(with load) 400 mm/s 375 mm/s
Max. driving speeds(with/without load) 18/20 km/h 17/19 km/h
Max towering (with load) 15.5/10.5 kn 16/11 kn
Grade ability(with load) 15/20% 15/20%
Lifting height (H1) 3000 mm 3000 mm
Free lift 80 mm 80 mm
Tilting angles(forward α-backward β) 6/12 6/12
Min. turning radius 2500 mm 2500 mm
Min. Right angle aisle width 2110 mm 2110 mm
Min. under-clearance 135 mm 135 mm
Overall length(including fork) (A) 3800 mm 3800 mm
Overall width(B) 1230 mm 1230 mm
Overall height(mast lowered) (H) 2110 mm 2110 mm
Overall height(mast extender) (H2 ) 4270 mm 4270 mm
Overall height to overhead guard(H3) 2110 mm 2110 mm
Fork overhang(A1) 465 mm 465 mm
Wheel base (A2) 1700 mm 1700 mm
Front tread (B1) 1000 mm 1000 mm
Rear tread(B2) 970 mm 970 mm
Front tire 28×9-15 28×9-15
Rear tire 6.50-10 6.50-10
Total weight 4320 kg 4580 kg
Fork width(B3) 125 mm 125 mm
Fork thickness (H4) 45 mm 50 mm
Backrest height 1225 mm 1225 mm
Fork length (A3) 1220 mm 1220 mm
Engine model 490 490
Rated power 39 kw 39 kw
Rotate speed at rated power 2650 rpm 2650 rpm
Max. Torque 157 nm 157 nm
Rotate speed at max. Torque 1980 rpm 1980 rpm
Type of power shift Tor-con Tor-con
