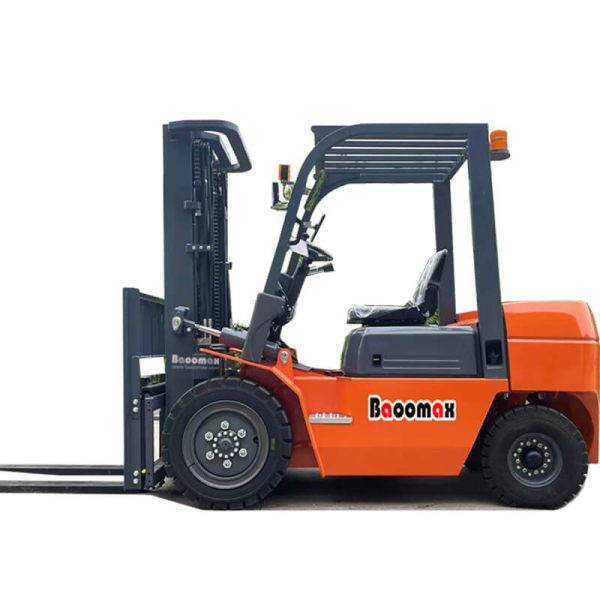

4 Ton And 4.5 Ton Diesel Forklift Truck

Baoomax Diesel Forklifts truck machine are built to conquer the challenges of industrial environments with ease. Its solid frame, reinforced components, and rugged design ensure exceptional durability and longevity, making it the ideal choice for demanding applications in warehouses, distribution centers, manufacturing facilities, and more.

Product Description

Equipped with advanced hydraulic systems, Baoomax 4 ton Diesel Forklift truck offers smooth and responsive control for accurate maneuverability. Its intuitive controls and ergonomic design empower operators to navigate confined spaces, narrow aisles, and congested areas with ease, ensuring optimal productivity and safety. The forklift’s precise steering and responsive braking systems enable seamless operation, contributing to enhanced efficiency and minimizing the risk of accidents or damage.

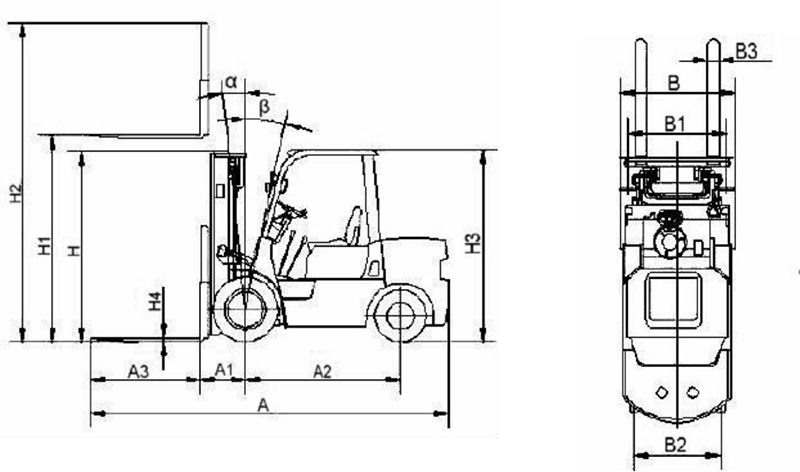

4 Ton And 4.5 Ton Diesel Forklift Truck specification

4 Ton And 4.5 Ton Diesel Forklift Truck specification

Load capacity 4000 kg 4500 kg
Load center 500 mm 500 mm
Power type Diesel Diesel
Max. lifting speeds(with load) 300 mm/s 300 mm/s
Max. driving speeds(with/without load) 18/20 km/h 18/20 km/h
Max towering (with load) 16.5/11.5 kn 16.5/11.5 kn
Grade ability(with load) 15/20% 15/20%
Lifting height (H1) 3000 mm 3000 mm
Free lift 80 mm 80 mm
Tilting angles(forward-backward) 6°/12° 6°/12°
Min. turning radius 2720 mm 2720 mm
Min. Right angle aisle width 2320 mm 2320 mm
Min. under-clearance 135 mm 135 mm
Overall length(including fork) (A) 4100 mm 4100 mm
Overall width (B) 1230 mm 1230 mm
Overall height(mast lowered) (H) 2110 mm 2110 mm
Overall height(mast extended) (H2 ) 4270 mm 4270 mm
Overall height to overhead guard (H3) 2110 mm 2110 mm
Fork overhang (A1) 470 mm 470 mm
Wheel base (A2) 1900 mm 1900 mm
Front tread (B1) 1060 mm 1060 mm
Rear tread (B2) 970 mm 970 mm
Front tire 250-15 250-15
Rear tire 6.50-10 6.50-10
Total weight 4900 kg 5200 kg
Fork width (B3) 150 mm 150 mm
Fork thickness (H4) 50 mm 50 mm
Backrest height 1225 mm 1225 mm
Fork length (A3) 1220 mm 1220 mm
Engine model 498/4C6-65M 498/4C6-65M
Rated power 45/48 kw 45/48 kw
Rotate speed at rated power 2500/2450 rpm 2500/2450 rpm
Max. Torque 1800/1700 rpm 1800/1700 rpm
Rotate speed at max. Torque 1800/1700 rpm 1800/1700 rpm
Type of power shift Tor-con Tor-con
