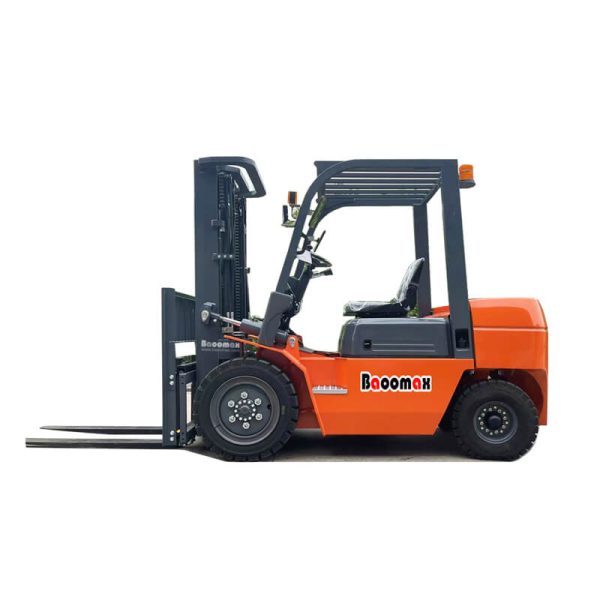

2 Ton and 2.5 Ton Diesel Forklifts

Baoomax 2ton and 2.5ton Diesel counterbalance Forklifts truck are built to conquer the challenges of industrial environments with ease. Its solid frame, reinforced components, and rugged design ensure exceptional durability and longevity, making it the ideal choice for demanding applications in warehouses, container , distribution centers, manufacturing facilities, and more.

Product Description

Equipped with advanced power systems, Baoomax mini small Diesel Forklift truck offers smooth and responsive control for accurate maneuverability. Its intuitive controls and ergonomic design empower operators to navigate confined spaces, narrow aisles, and congested areas with ease, ensuring optimal productivity and safety. The forklift’s precise steering and responsive braking systems enable seamless operation, contributing to enhanced efficiency and minimizing the risk of accidents or damage.

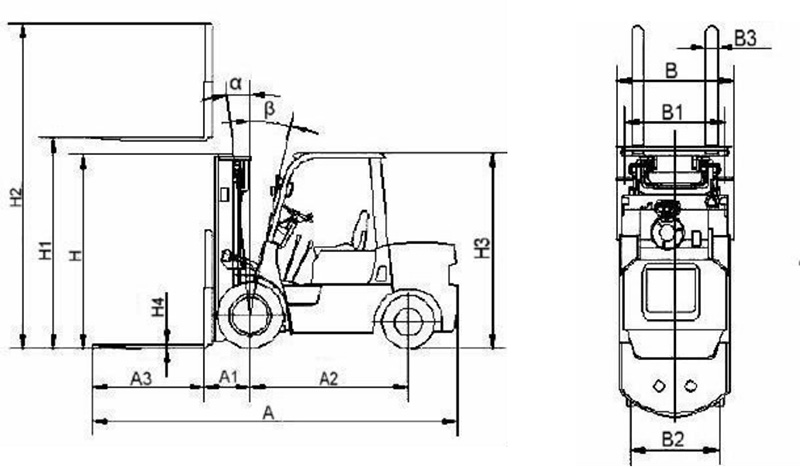

2 Ton and 2.5 Ton Diesel Forklifts specification

2 Ton and 2.5 Ton Diesel Forklifts specification

Model FL20DF FL25DF
Load capacity 2000 kg 2500 kg
Load center 500 mm 500 mm
Power type Diesel Diesel
Max. lifting speeds(with load) 400 mm/s 400 mm/s
Max. driving speeds(with/without load) 17/19 km/h 17/19 km/h
Max towering (with load) 14/9 kn 15/10 kn
Grade ability(with load) 15/20% 15/20%
Lifting height (H1) 3000 mm 3000 mm
Free lift 60 mm 60 mm
Tilting angles (forward α-backward β) 6°/12° 6°/12°
Min. turning radius 2450 mm 2450 mm
Min. Right angle aisle width 2050 mm 2050 mm
Min. under-clearance 110mm 110 mm
Overall length(including fork) (A) 3605 mm 3605 mm
Overall width (B) 1160 mm 1160 mm
Overall height(mast lowered) (H) 2095 mm 2095 mm
Overall height(mast extended) (H) 4080 mm 4080 mm
Overall height to overhead guard (H3) 2095 mm 2095 mm
Fork overhang (A1) 451 mm 451 mm
Wheel base (A2) 1640 mm 1640 mm
Front tread (B1 ) 970 mm 970 mm
Rear tread (B2 ) 970 mm 970 mm
Front tire 7.00-12 7.00-12
Rear tire 6.00-9 6.00-9
Total weight 3320kg 3600kg
Fork width (B3) 100 mm 122 mm
Fork thickness (H4) 40 mm 40 mm
Backrest height 1000 mm 1000 mm
Fork length (A3) 1070 mm 1070 mm
Engine model 490 490
Rated power 39 kw 39 kw
Rotate speed at rated power 2650 rpm 2650 rpm
Max. Torque 157 nm 157 nm
Rotate speed at max. Torque 1980 rpm 1980 rpm
Type of power shift   Tor-con
