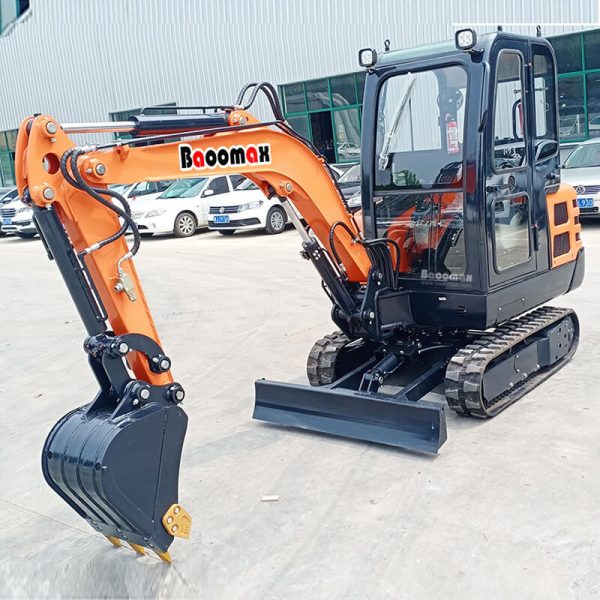

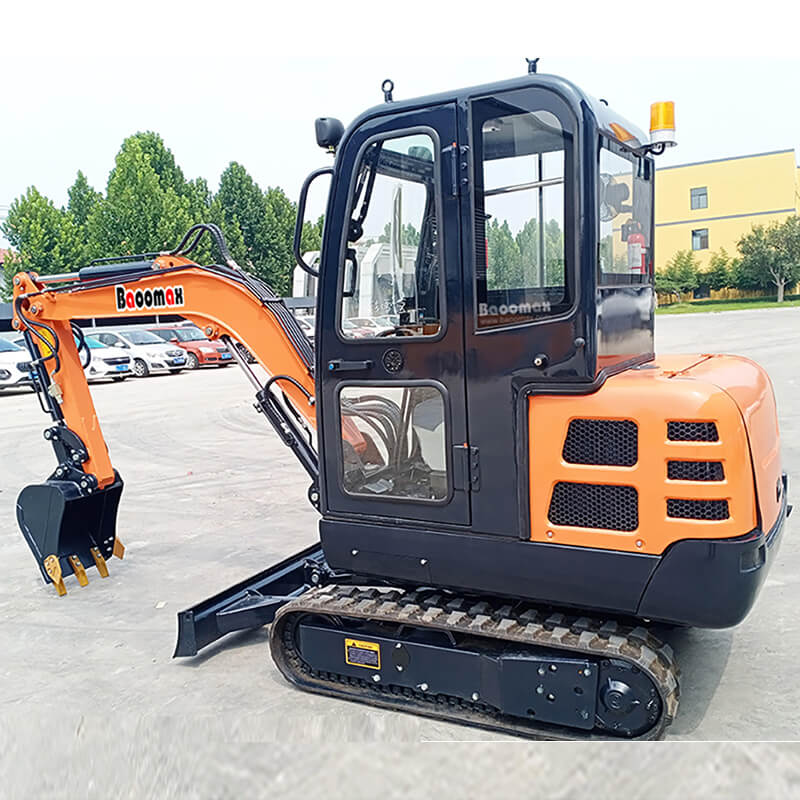

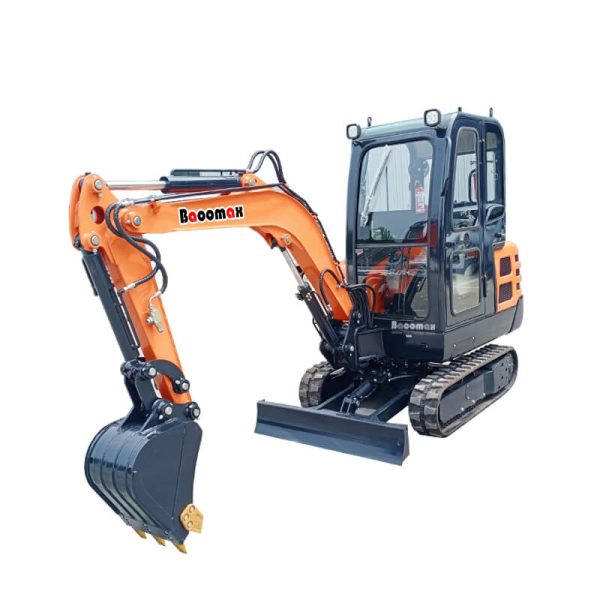

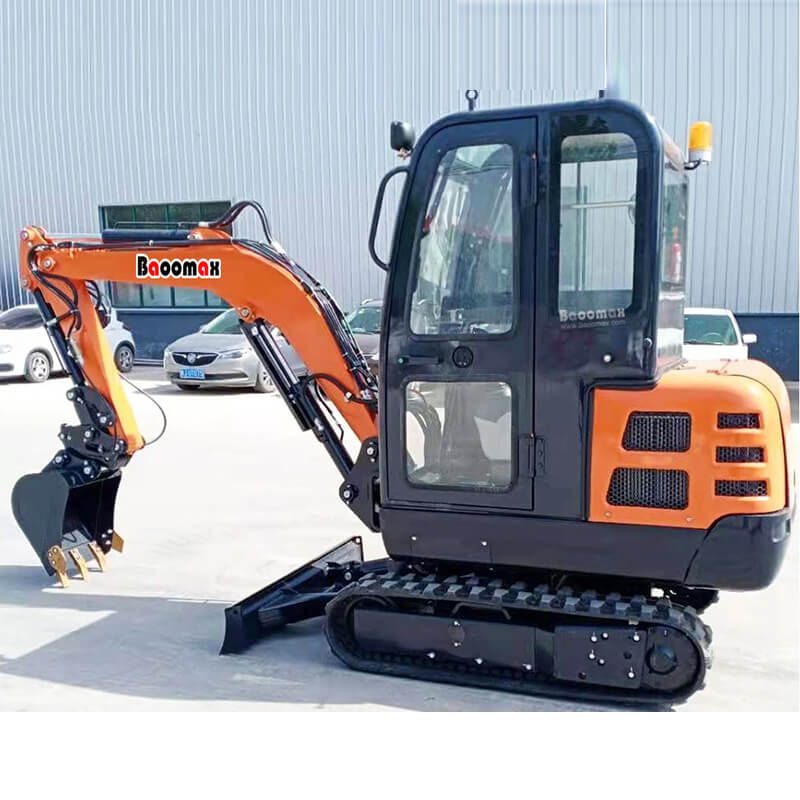

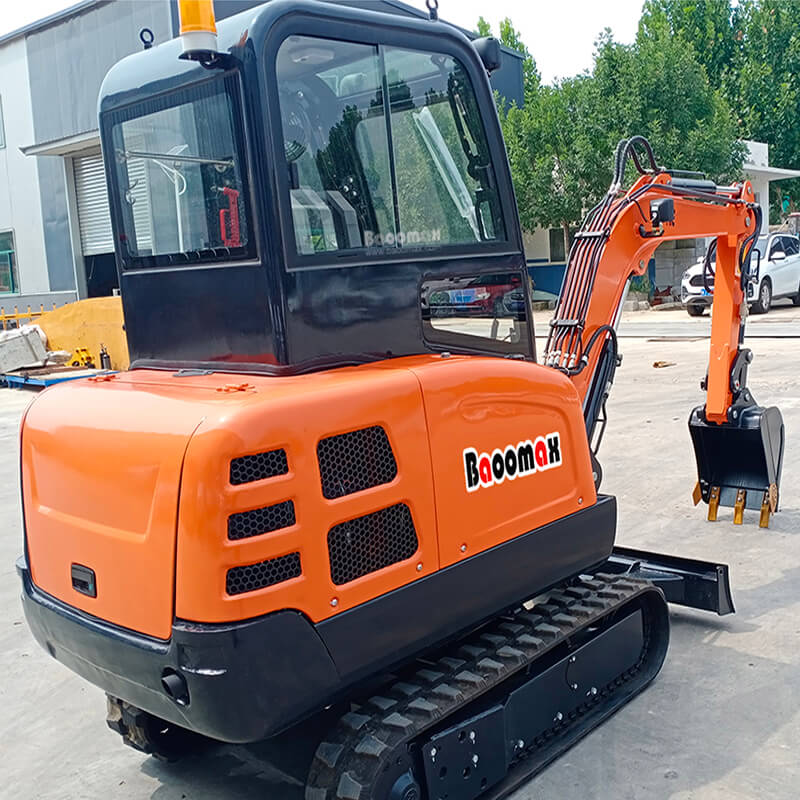

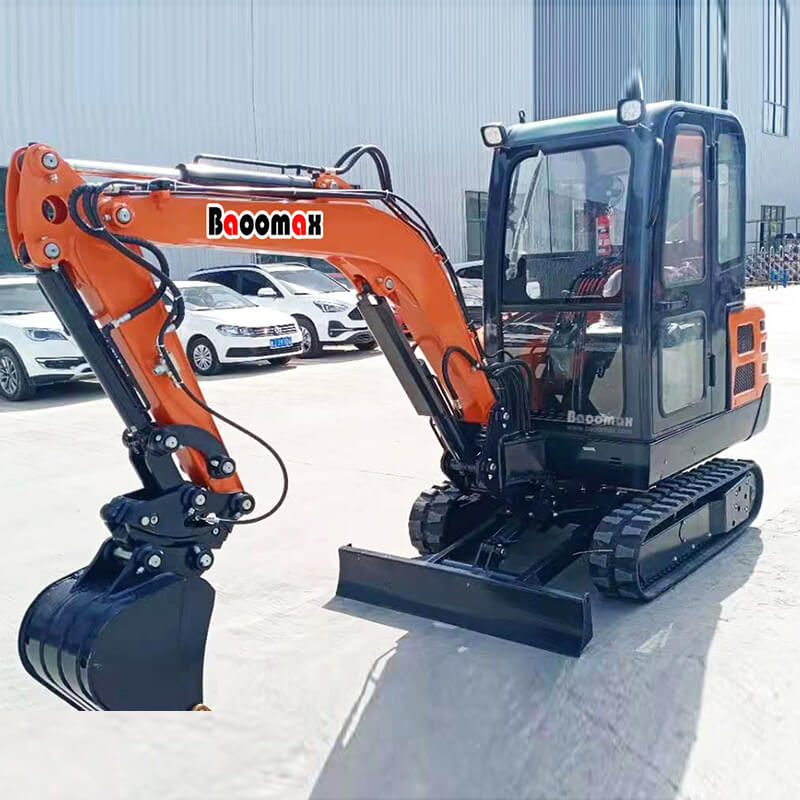

ME25 Mini Excavator

Baoomax Mini crawler Excavator is specifically designed to excel in tight spaces and restricted access areas where traditional excavators may struggle to operate. The small compact size and nimble maneuverability allow it to navigate through narrow passageways, urban environments, and confined construction sites with ease. With Baoomax Mini Excavator, no excavation task is too challenging or inaccessible.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Don’t let its mini size fool you— Baoomax new small 2.5ton 3ton digger Excavator packs a punch when it comes to power and performance. Equipped with a high-performance hydraulic system and a range of attachments, it can effortlessly dig, lift, and move large quantities of soil, rocks, and debris. The 2.5ton crawler excavator efficient digging capabilities enable precise excavation, grading, and trenching, ensuring optimal results in various construction applications.

Its compact size, power, and versatility enable it to excel in challenging environments, making it an ideal choice for urban construction, landscaping, and renovation projects.

ME25 Mini Excavator specification

Bucket capacity 0.1m³
Swing speed 0~12 rpm
Max. gradeability 30°
Max. Bucket digging force 13.3KN
Max. Arm digging force 9.3KN
Engine model LL385B
Power /Rotation speed 22.1kw/2300rpm
Hydraulic system pressure 20Mpa
Machine weight 2200kg
Overall dimension (L*W*H) 4080mm*1300mm*2280mm
Height of cabin 2280mm
Axle base(Track length on ground) 1260mm
Track gauge 1050mm
Min.Ground clearance 230mm
Swing radius at tail 1260mm
Width of track 250mm
Max. Digging height 3700mm
Max. Dumping height 2290mm
Max. Digging depth 2450mm
Max. Vertical digging depth 2280mm
Max. Digging radius 4370mm
Min .swing radius 2015mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 310mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°
