SSL100 Skid Steer Loader

SSL100 skid steer loader Overview

With its powerful 100HP diesel engine, impressive 1200KG loading capacity, and a bucket capacity of 0.55cbm, SSL100 skid steer loader is the ultimate workhorse for your heavy-duty projects.Whether you’re involved in construction, landscaping, agriculture, or any other industry that requires robust material handling, this skid steer loader will surpass your expectations. Move heavy loads effortlessly, improving your productivity and maximizing your operational efficiency.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

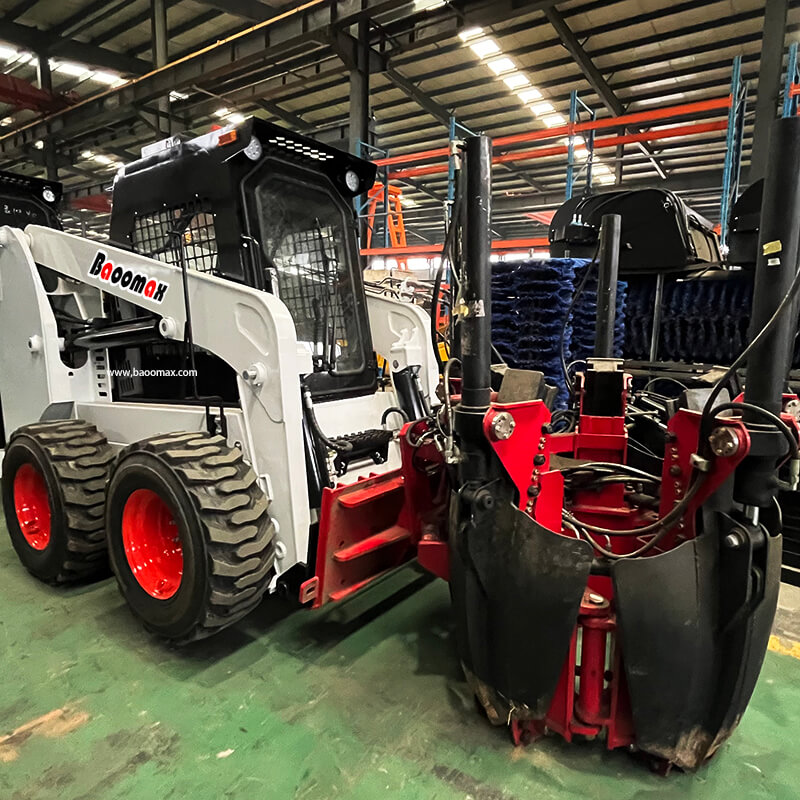

Whether you need to load, excavate, grade, or perform other tasks, this 100HP wheel skid steer loader is up to the challenge. The skid steer quick attach plate size is same with BOBCAT ,CAT and KUBOTA skid steer loader. With its interchangeable attachments, such as 4 in 1  buckets, forks, auger , trencher, brush cutter, backhoe ,sweeper , grapple , forest mulcher and more, you can easily customize the loader to suit your specific requirements, maximizing its utility and efficiency.

SSL100 skid steer loader Main features:

  • Engine :100HP diesel engine
  • Loading capacity: 1200KG
  • Machine width:1900mm
  • Bucket capacity:0.55CBM
  • Machine weight:3800KG

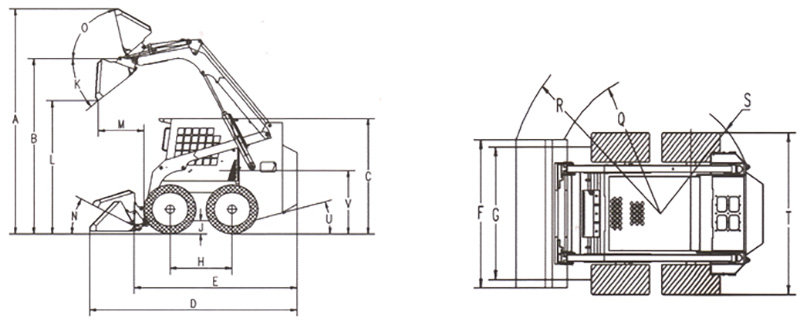

SSL100 skid steer specifications:

SSL100 skid steer specifications

A. Height at Maximum Extension       3780mm
B. Hinge Pin Height       3150mm
C. Total Height       2040mm
D. Length with Bucket       3450mm
E. Length without Bucket       2540mm
F. Width with Bucket       1900mm
G. Track Width       1560mm
H. Wheelbase       1020mm
J. Ground Clearance       260mm
K. Dumping Angle °       45
L. Dumping Height       2400mm
M. Maximum Reach       700mm
Rated Operating Capacity(Kg)       1200
Tipping load(Kg)       2400
Bucket Capacity(m3)       0.55
Lifting Force(Kg)       2200
Hydraulic Pump Flow(L/min)      75/125
Engine power(KW)       74KW
Weight(Kg)       3800
Max. Travel Speed(km/h)       12/18
Grade ability(° )       20
Tire       12-16.5
Fuel/hyd. Oil capacity(L) 80/80
