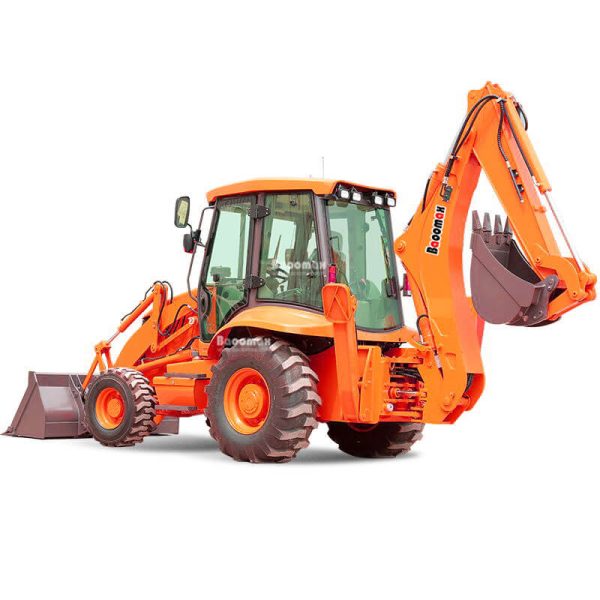

BA580 Backhoe Loader

BA580 Backhoe loader Overview

The BA580 Backhoe Loader is the ultimate multi-purpose machine that combines the capabilities of a loader and a backhoe. It is designed to tackle a wide range of excavation and construction tasks with ease. Whether you need to dig trenches, load materials, or perform other earth-moving tasks, this backhoe loader is equipped to handle it all. Its versatile design makes it a valuable asset on construction sites, landscaping projects, utility maintenance, and more.

Product Description

Powered by a robust engine, the BA580 Backhoe Loader similar like jcb 3cx backhoe loader, delivers outstanding performance in every job. With its impressive horsepower and torque, this machine effortlessly tackles challenging terrain and demanding excavation tasks. Experience the power and efficiency that will help you complete your projects faster and more efficiently.

BA580 Backhoe loader specifications:

Overall Operating Weight 8200KG
 L*W*H 6230×2365×3752mm
 Wheel base 2200mm
 Min. Ground Clearance 300mm
 Bucket Capacity 1.0m3
Breakout Force 58KN
Loading Lifting Capacity 2500KG
Bucket Dumping Height 2700mm
Bucket Dumping Distance 925mm
Digging Depth 52mm
Backhoe Capacity 0.3 m3
Max. Digging Depth 4082/4500mm
Swing Angle of Excavator Grab 190o
Max. Pulling Force 65KN
Engine Model YC4A105Z-T20
Engine Type In Line Direct injection Four-Stroke and Injection Combustion Chamber
Cylinder-Inside Diameter*Stroke 4-108×132
Rated Power 75KW
Rated Speed 2200r/min
Min. Fuel Consumption ≤230g/km.h
Max.Torque ≥400N.M
Displacement 4..837L
Model of Steering Device BZZ5-250
Steering Angle ±36 o
Min. turning radius 6581mm
Pressure of the system 12Mpa
Alxe Feicheng Axle Factory
Main Transmission Type Double Reduction
Final Reducer Single Stage Final Reducer
Rated Loader of Axle 8/18.5t
Torque  converter Model YJ280
Torque  converter Type Single-stage Three Elements
Cooling Method Oil-cooling Pressure Circulation
Gearbox Type Fixed Shaft Power Transmission
Oil Pressure of Clutch 1373Kpa—1569 Kpa
Gears two forward, Two reverse gears
Max.Speed 28Km/h
Tyres Model 14-17.5/19.5L-24
Pressure of Front wheel 0.55Mpa
Pressure of Back Wheel 0.223Mpa
