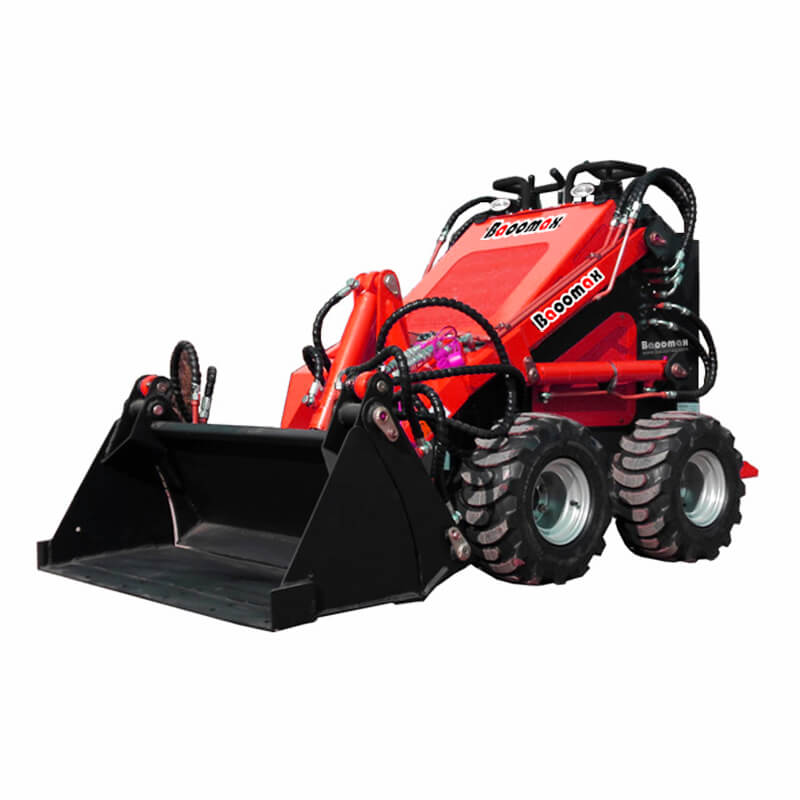

BA380W Mini Skid Steer Loader

BA380W Stand up skid steer Overview

Designed for landscaping, construction, and excavation, Baoomax BA380W China small skid steer loader is built to last, with a rugged frame and high-quality components that can withstand even the toughest conditions.

The BA380W small skid steer loader finish the tough jobs with ease, while its small size allows it to fit into tight spaces and maneuver around obstacles.

Product Description

BA380W compact utility Mini skid steer loaders are versatile machines that can be used for a wide range of tasks. There are various attachments, such as 4in 1 buckets, pallet forks, and augers, trencher ect which can be easily swapped out to perform different task. The attachments can also fit on Dingo ,kanga mini loaders.

Cost-effective: BA380W cheap electric start skid steer loader is more affordable than larger loaders, which makes it a great option for small businesses and contractors who need a reliable machine but cannot afford a larger one. They are also more fuel-efficient, which can save money on operating costs over time.

BA380W mini loader skid steer Main features:

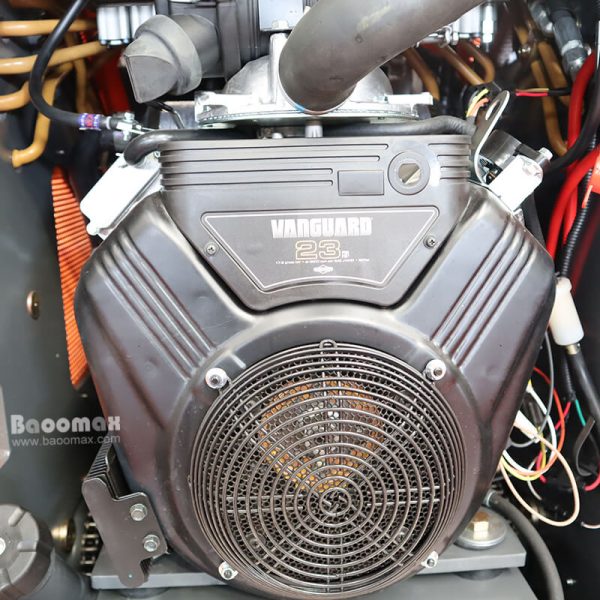

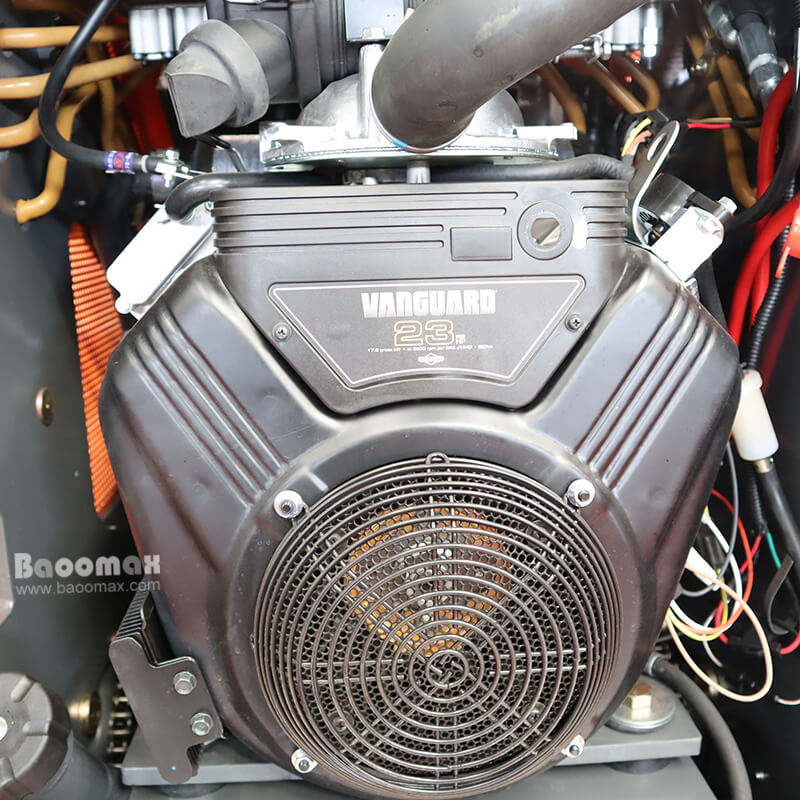

  • Powerful USA Briggs&Stratton engine 23HP ,3 years warranty
  • Double gear pumps
  • 4 wheel drive
  • 380KG rated operating capacity

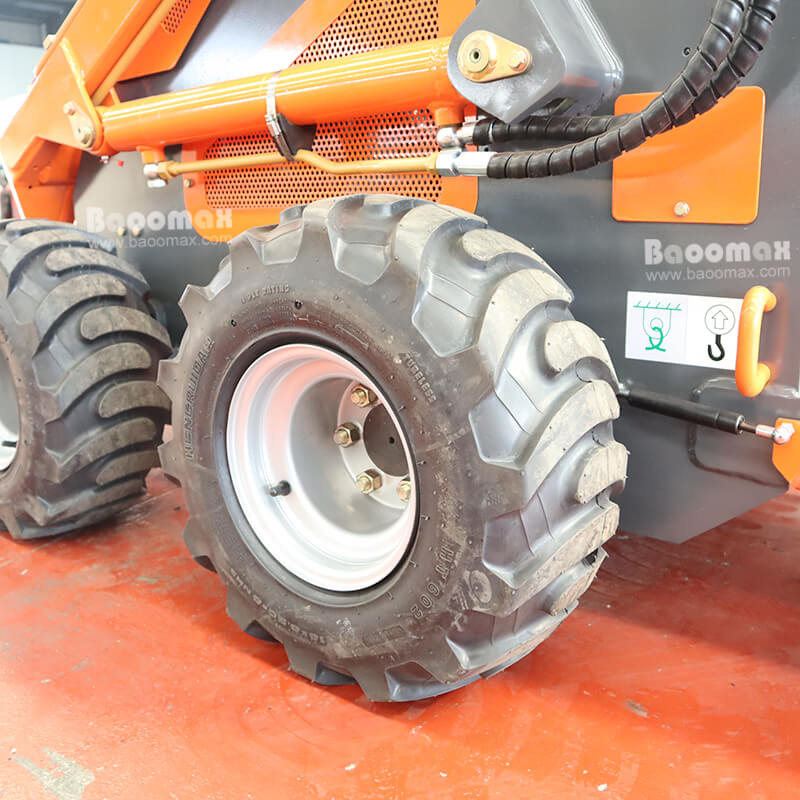

  • Pneumatic tyres: 18×8.5-8
  • Electric key start
  • Hitch plate is same with other machine

BA380W small skid steer specifications:

Item Metric   Inch
Max working height(A) 2115 mm 83.3 inch
Max pin height (B) 1856 mm 73.1 inch
Max dump height(C) 1460 mm 57.5 inch
The highest point discharge distance(D) 388 mm 15.3 inch
Bucket swing angle(β) 55° 55°
Bucket unloading angle(γ) 30° 30°
Opening-closing angle(θ) 25° 25°
Angle of departure(α)
Total height (H) 1205 mm 47.4 inch
The height from the ground(F) 90 mm 3.5 inch
Wheelbase (G) 636 mm 25.0 inch
No bucket length(J) 1752 mm 69.0 inch
Total width (W) 1160 mm 45, 7 inch
Bucket width (K) 1150 mm 45.31inch
Total length(L)(with bucket) 2206 mm 86.9 inch
Turning radius (R) 1307 mm 51.5 inch
Machine weight 820kg 820kg
