BA2T Mini Track Loader

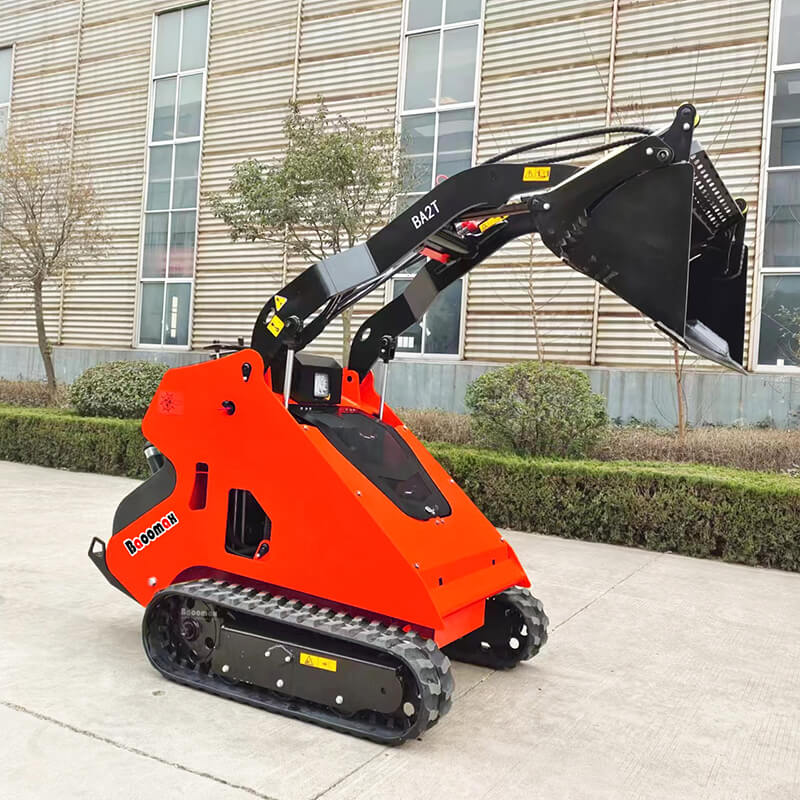

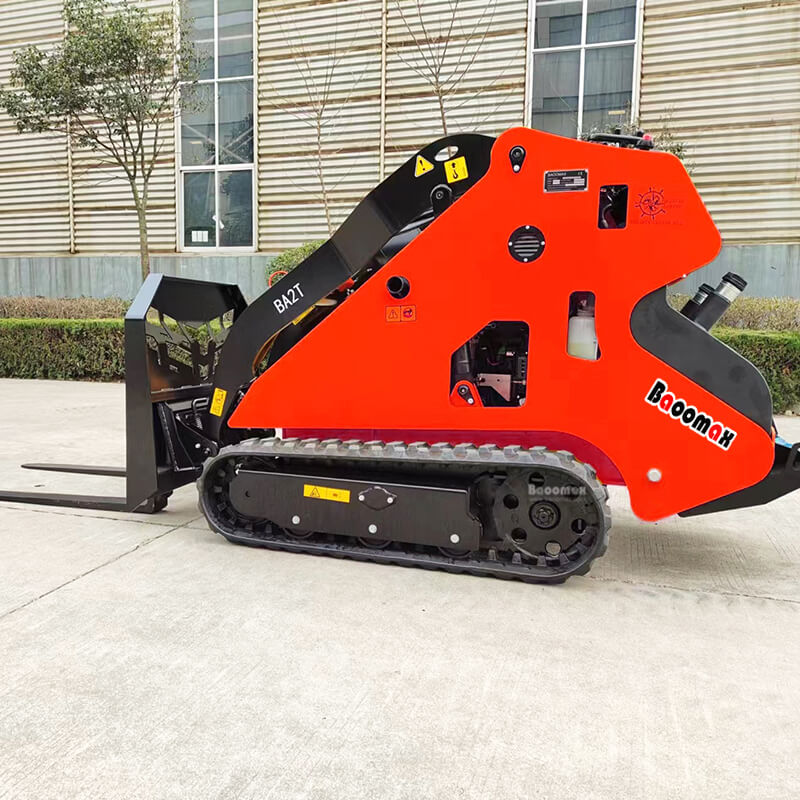

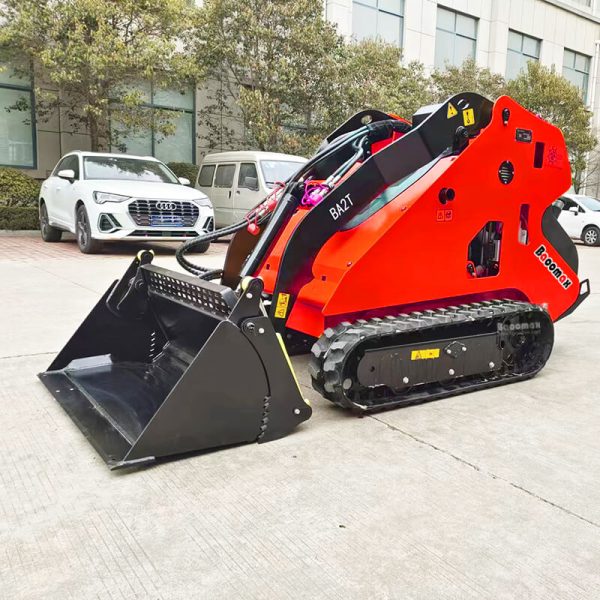

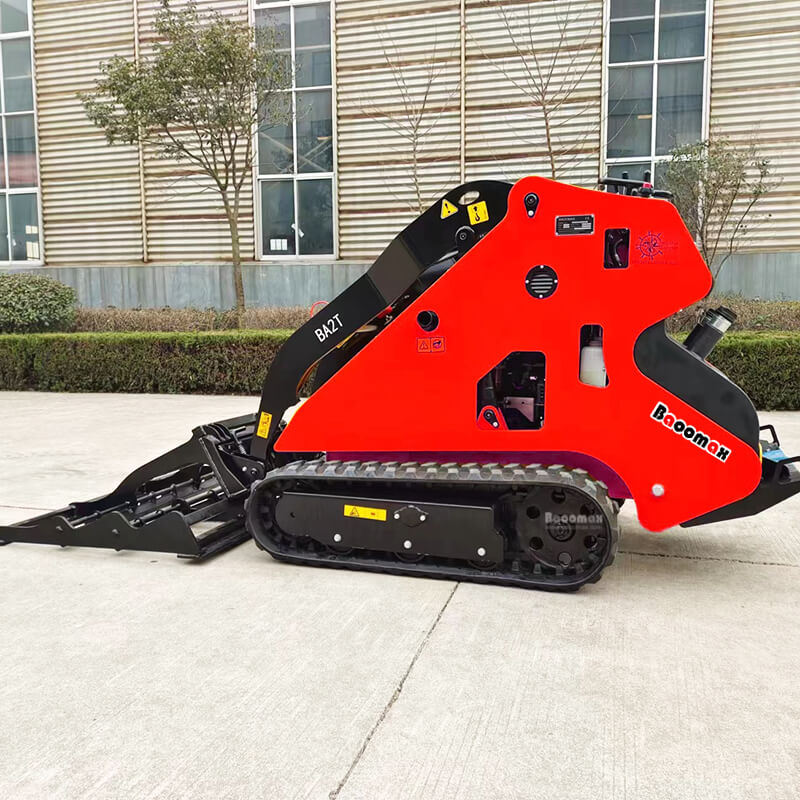

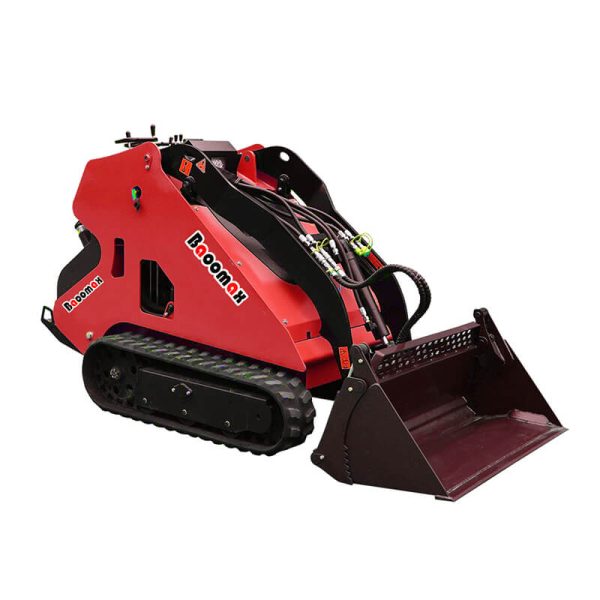

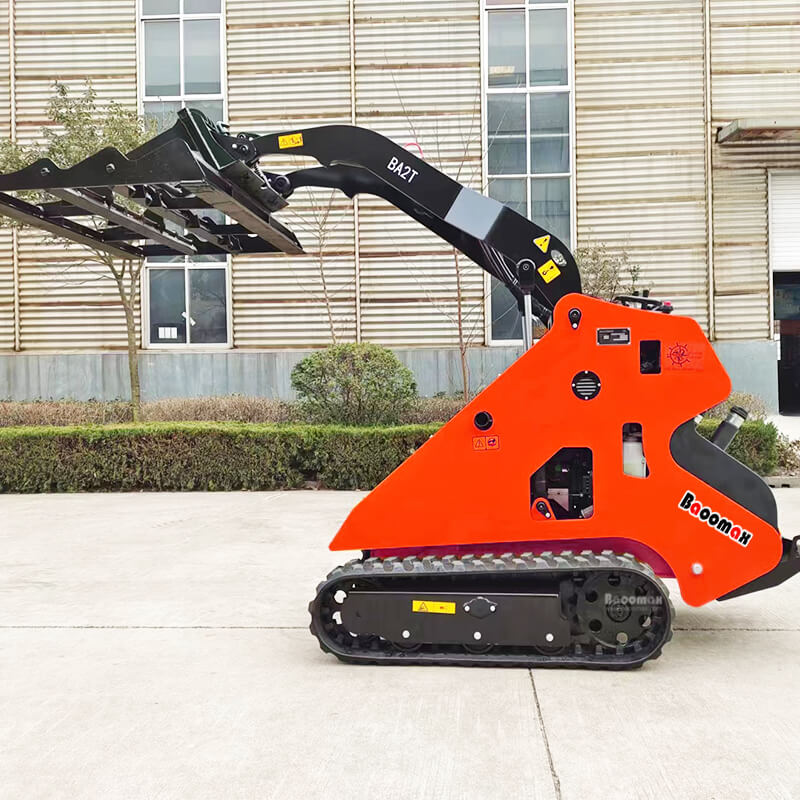

BA2T mini crawler loader overview

BA2T mini crawler loader equipped with powerful Japan Kubota diesel engine 25HP. It is designed for landscaping, construction, and excavation, BA2T mini track loader is built to last, with a rugged frame and high-quality components that can withstand even the toughest conditions.

Versatility on various terrains:  BA2T Mini track loaders perform well on a wide range of terrains, including gravel, dirt, grass, and pavement. They can easily transition between different surfaces without the need for additional attachments or modifications, making them versatile for different job sites.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Greater stability: The tracks on BA2Tmini skid steer diesel crawler loader provide a wider base of support compared to the wheels on mini wheel skid steer loaders. This increased stability allows operators to lift and carry heavier loads without tipping over. It also enhances operator safety when working on uneven or sloping terrain.

BA2T mini crawler loader Main features:

  • Janpan Kubota diesel engine 25HP (EPA)
  • Double gear pumps
  • 450KG rated operating capacity
  • Ruber track: 200x72x39
  • Electric key start,LED lights
  • Hitch plate is same with other machine

BA2T track skid steer loader specifications:

Item BA2T
Operating load(kg) 450
MaxSpeed(km/h) 0-6
Rated flux(L/min) 53.4
Rated power(HP) 25
Fuel tank capacity(L) 35
weight with bucket(kg) 1069
Bucket capacity(m3) 0.15
Overall operating height(mm) 2626
Height to bucket hinge pin(mm ) 1869
height to top of cab(mm) 1284
Without bucket length(mm) 1959
Overall length with bucket(mm) 2619
Dumping angle at maximum height(°) 37
Dumping height(mm) 1287
Dumping reach(mm) 833
Rollback o bucket on ground(°) 21
Rollback of bucket at full height(° 94
Wheelbase(mm) 918
Ground clearance(mm) 141
Front tuning radius(mm) 1572
Wheel  Tread (mm) 903
 Width(mm) 1103
 Bucket width (mm) 1250
