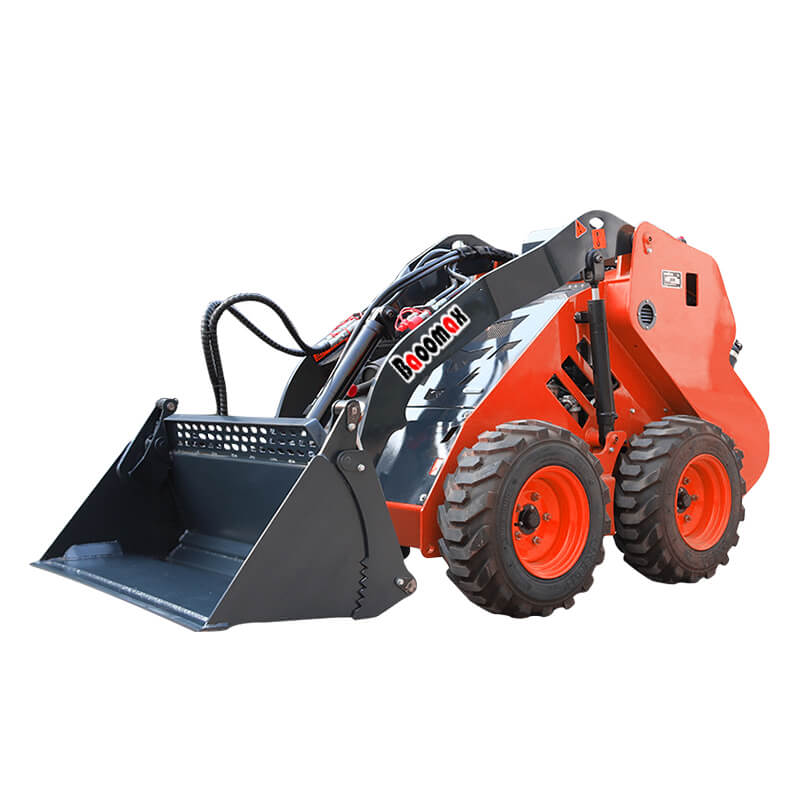

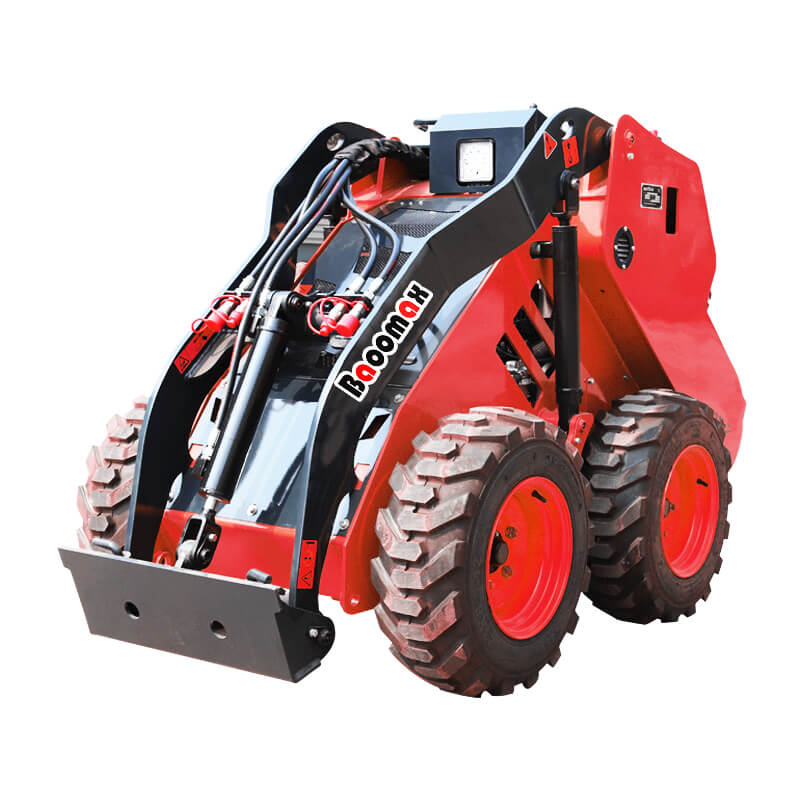

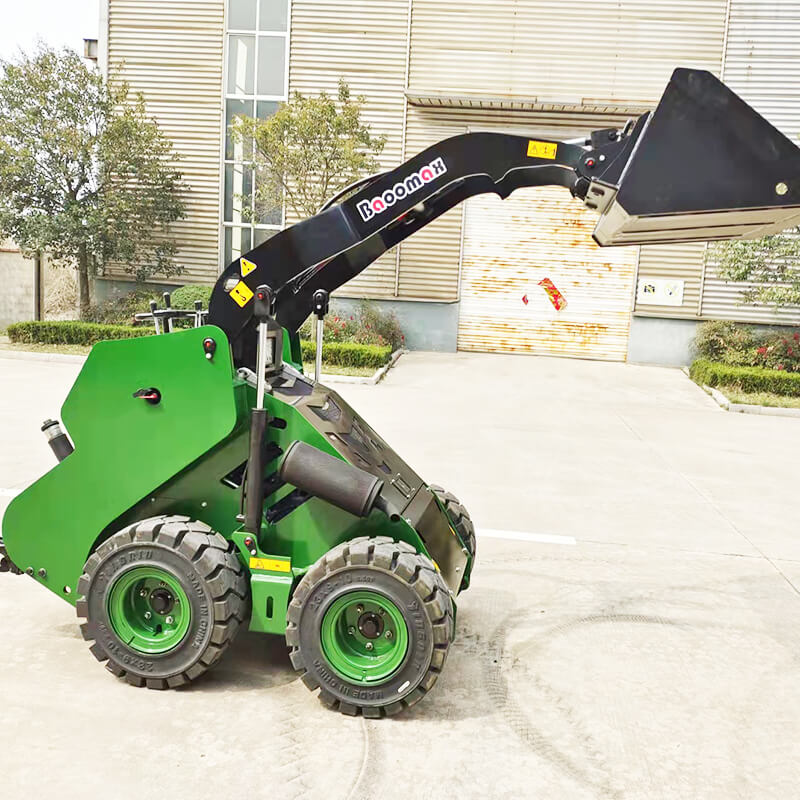

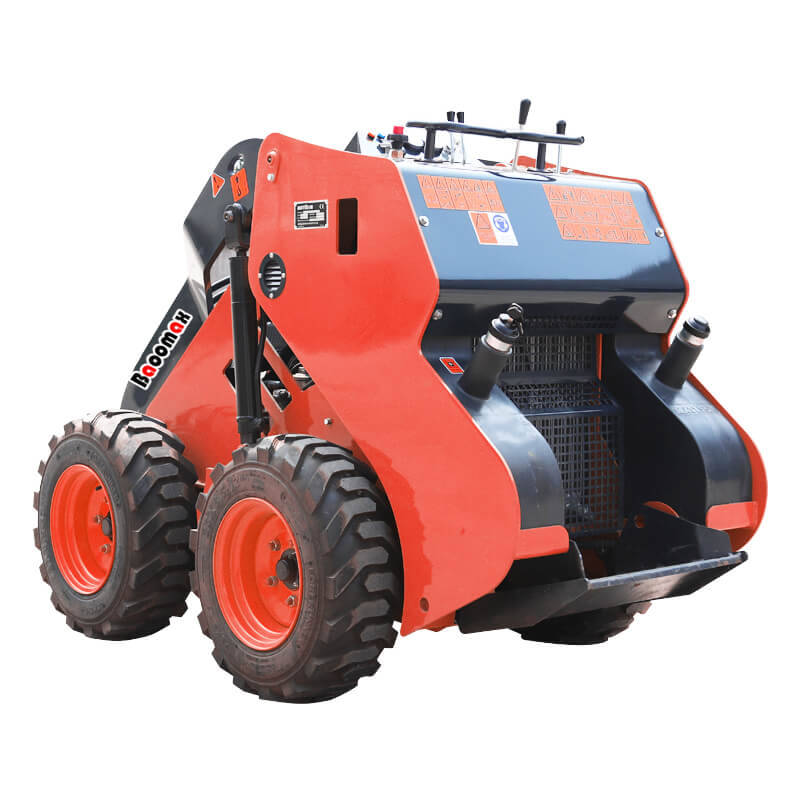

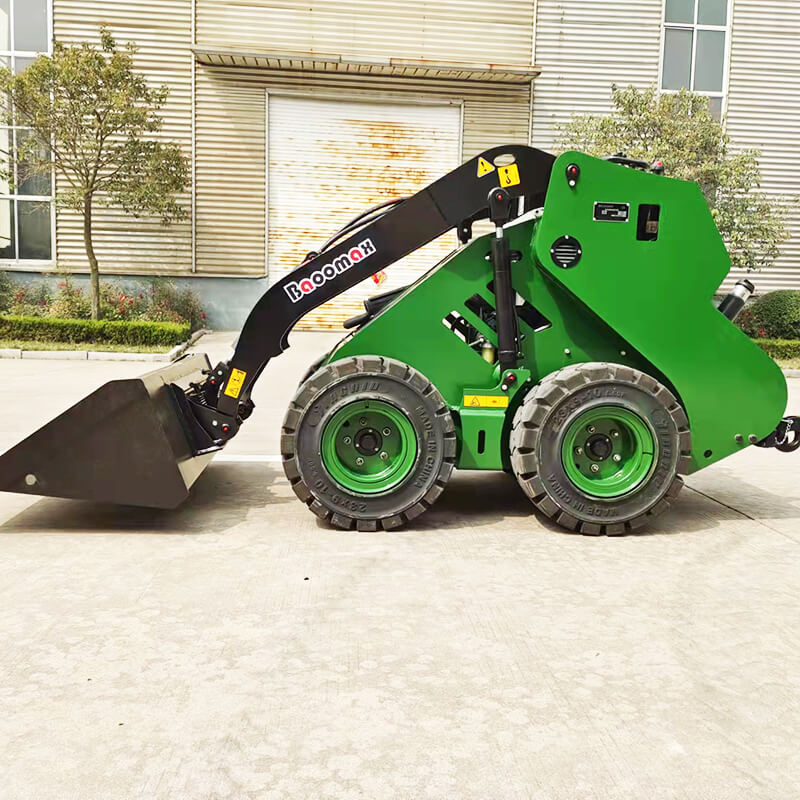

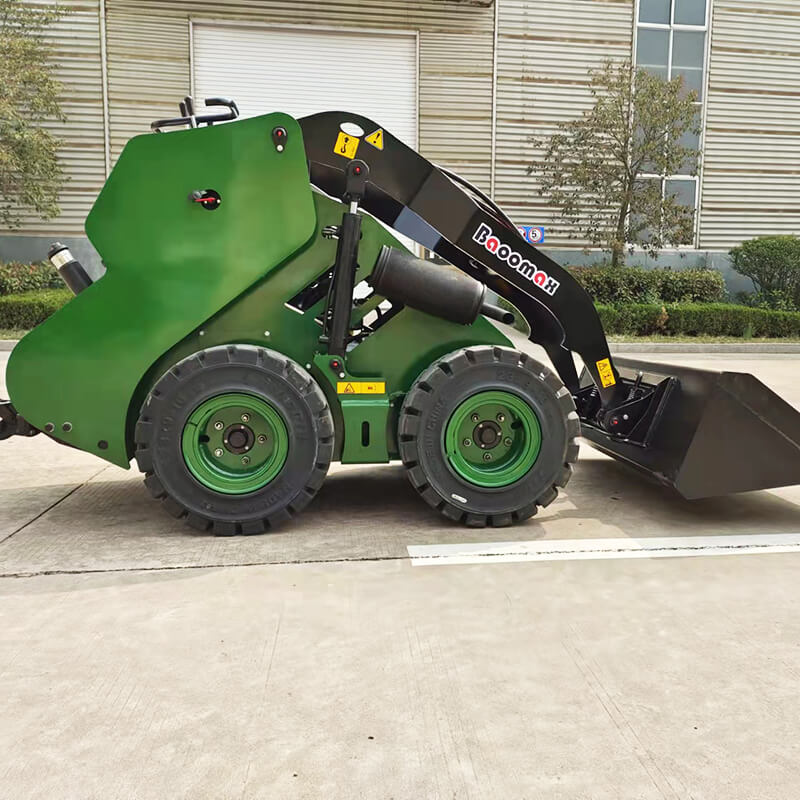

BA2W Mini Skid Steer Loader

BA2W walk behind skid loader Overview

With powerful Kubota diesel engine 25HP and more hydraulic power ,BA2W mini skid steer loader can help you get the job done efficiently and effectively Whether you’re a contractor, landscaper, farmer, or homeowner.

BA2W earth-moving machinery Mini skid steer loaders are versatile machines that can be used for a wide range of tasks. There are variety of attachments, such as 4in 1 buckets, pallet forks, and augers, trencher ect which can be easily swapped out to perform different task.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

BA2W small skid loader Main features:

  • Janpan Kubota diesel engine 25HP ,3 years warranty
  • Double gear pumps
  • 4 wheel drive motors
  • 450KG rated operating capacity
  • Pneumatic tyres: :23*8.5-12
  • Electric key start,LED lights
  • Hitch plate is same with other machine

BA2W compact mini loader specifications:

Item (Baoomax machinery) BA2W
Brand Baoomax
Operating load(kg) 450
MaxSpeed(km/h) 0-10
Rated flux(L/min) 53.4
Rated power(HP) 25
Fuel tankcapacity(L) 35
weight with bucket(kg) 940
Bucket capacity(m3) 0.15
Overall operating height(mm) 2623
Height to bucket hinge pin(mm ) 1867
height to top of cab(mm) 1297
Without bucket length(mm) 1969
Overall length with bucket(mm) 2605
Dumping angle at maximum height(°) 37
Dumping height(mm) 1279
Dumping reach(mm) 834
Rollback o bucket on ground(°) 21
Rollback of bucket at full height(° 94
Wheelbase(mm) 775
Ground clearance(mm) 193
Front tuning radius(mm) 1621
Wheel  Tread (mm) 856
 Width(mm) 1080
 Bucket width (mm) 1250
