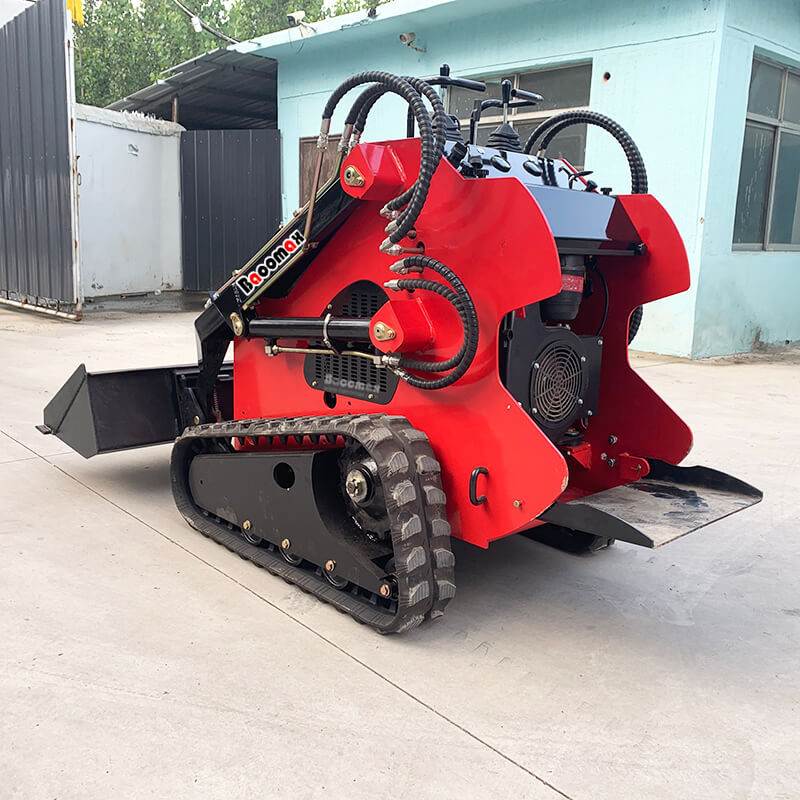

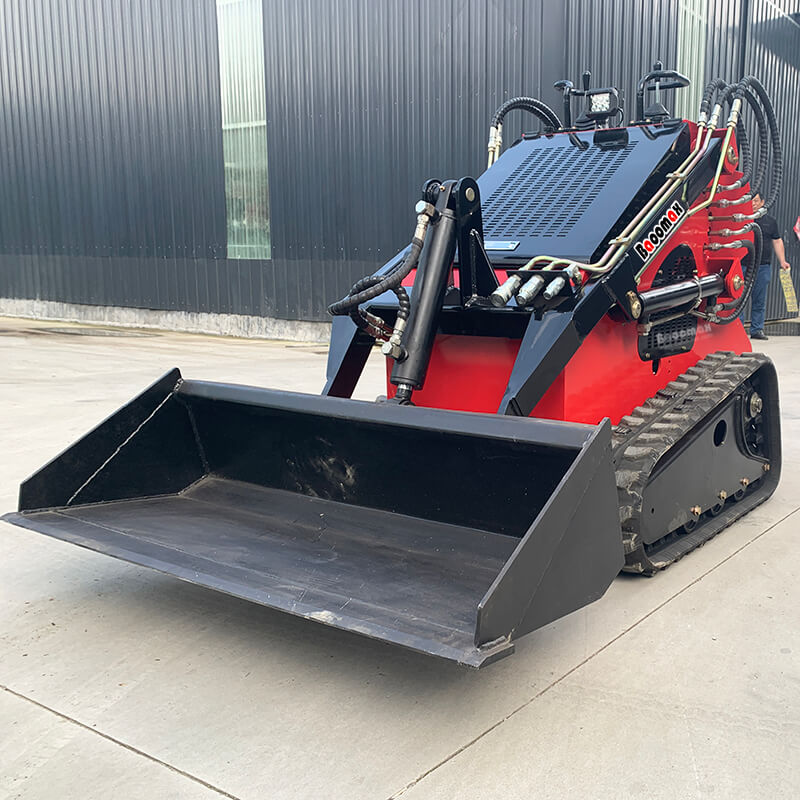

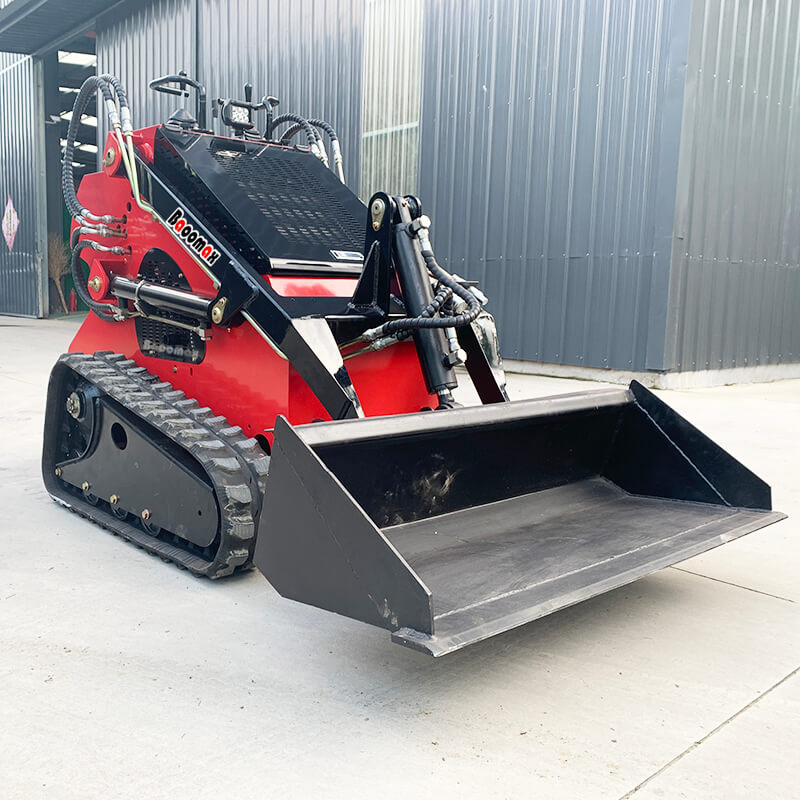

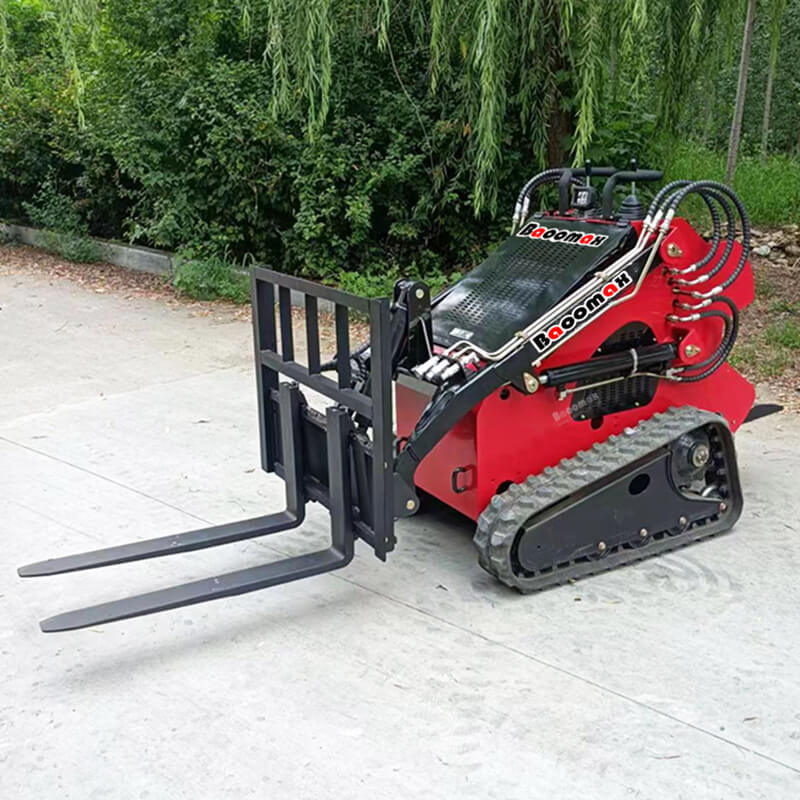

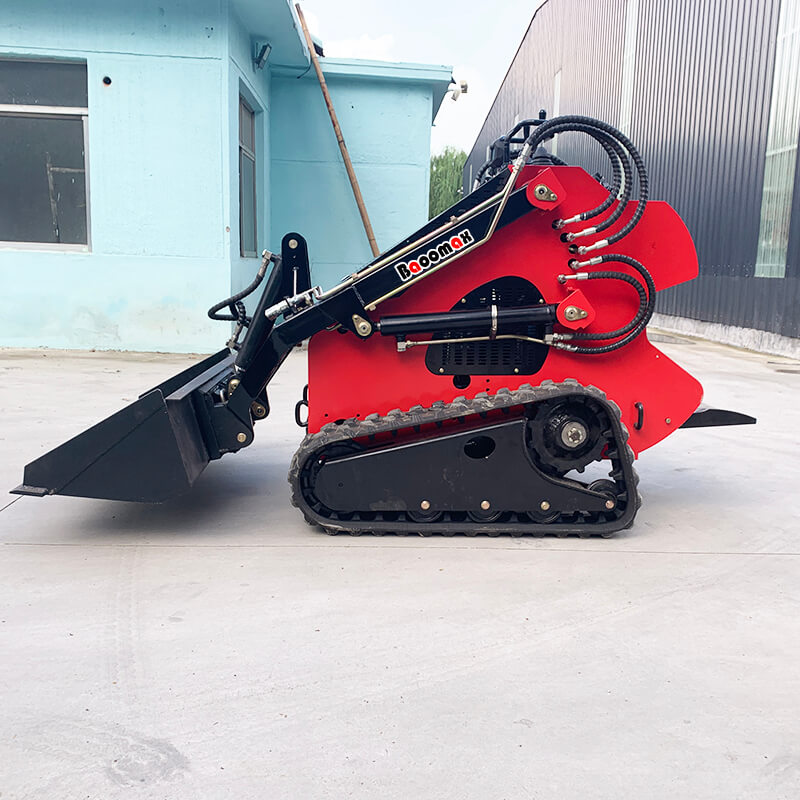

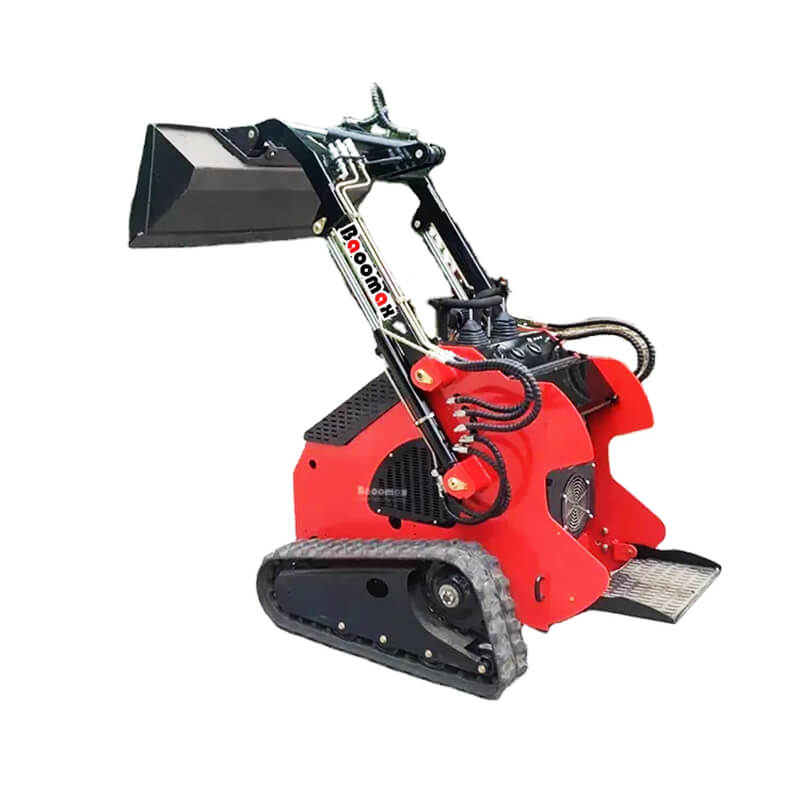

BA30T Mini Track Loader

BA30T Compact track loader Overview

Designed for landscaping, construction, and excavation, BA30T tracked mini skid steer loader is built to last, with a rugged frame and high-quality components that can withstand even the toughest conditions.

The BA30T mini track skid steer loader finish the tough jobs with ease, while its small size allows it to fit into tight spaces and maneuver around obstacles.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Versatility on various terrains:  BA30T Mini crawler skid steer loaders perform well on a wide range of terrains, including gravel, dirt, grass, and pavement. They can easily transition between different surfaces without the need for additional attachments or modifications, making them versatile for different job sites.

Cost-effective: BA30T walk behind crawler skid steer loader is more affordable than larger loaders, which makes it a great option for small businesses and contractors who need a reliable machine but cannot afford a larger one. They are also more fuel-efficient, which can save money on operating costs over time.

BA30T mini skid steer loader with track Main features:

  • Powerful USA Briggs&Stratton engine 23HP ,3 years warranty
  • Double gear pumps
  • 4 wheel drive motors
  • 380KG rated operating capacity
  • Rubber track: 180x36x72
  • Electric key start,LED lights
  • Hitch plate is same with other machine
  • Optional engines: Loncin or Rato engine,23HP kohler engine or koop diesel engine

BA30T mini skid steer crawler loader specifications:

Item BA30
Operating load(kg) 380
MaxSpeed(km/h) 0-6
Rated flux(L/min) 25-60
Rated power(HP) 23
Fuel tankcapacity(L) 5.5
weight with bucket(kg) 890
Bucket capacity(m3) 0.15
Overall operating height(mm) 2450
Height to bucket hinge pin(mm ) 1870
height to top of cab(mm) 1350
Without bucket length(mm) 1680
Overall length with bucket(mm) 2206
Dumping angle at maximum height(°) 34
Dumping height(mm) 1510
Dumping reach(mm) 450
Rollback of bucket on ground(°) 27
Rollback of bucket at full height(° 100
Wheelbase(mm) 850
Ground clearance(mm) 150
Front tuning radius(mm) 1245
Wheel  Tread (mm)
 Width(mm) 980
 Bucket width (mm) 1120
