SSL120 Skid Steer Loader

SSL120 skid steer loader Overview

With its powerful 140 HP diesel engine, impressive 1500KG loading capacity, and a bucket capacity of 0.55cbm, SSL120 skid steer loader is the ultimate workhorse for your heavy-duty projects. It’s the biggest skid steer loader in our company ,Whether you’re involved in construction, landscaping, agriculture, or any other industry that requires robust material handling, this skid steer loader will surpass your expectations. Move heavy loads effortlessly, improving your productivity and maximizing your operational efficiency.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

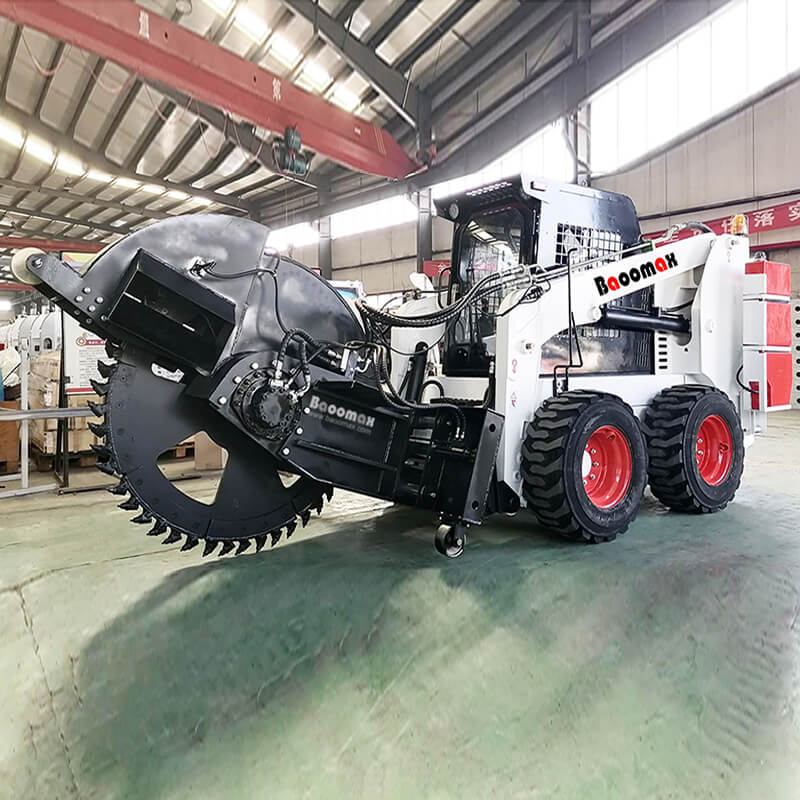

Whether you need to load, excavate, grade, or perform other tasks, this 140HP wheel skid steer loader is up to the challenge. The skid steer quick attach plate size is same with BOBCAT ,CAT and KUBOTA skid steer loader. With its interchangeable skid steer attachments, such as 4 in 1  buckets, forks, auger , trencher, brush cutter, backhoe ,sweeper , grapple , forest mulcher and more, you can easily customize the loader to suit your specific requirements, maximizing its utility and efficiency.

SSL120 Skid steer Main features:

  • Engine :140HP diesel engine
  • Loading capacity: 1400KG
  • Machine width:1900mm
  • Bucket capacity:0.55CBM
  • Machine weight:3800KG

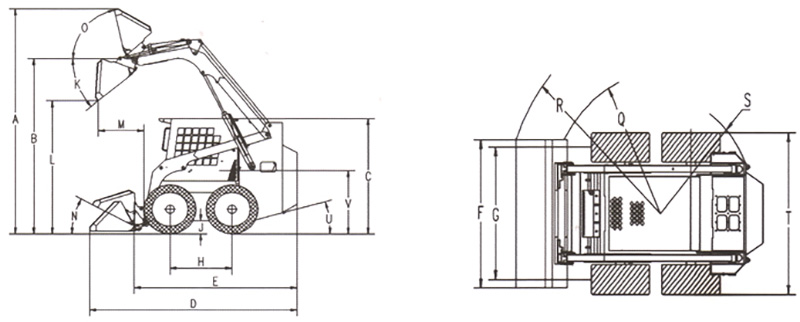

SSL120 skid steer specifications:

SSL120 skid steer specifications

A. Height at Maximum Extension       4070mm
B. Hinge Pin Height       3150mm
C. Total Height       2160mm
D. Length with Bucket       3580mm
E. Length without Bucket       2880mm
F. Width with Bucket       1880mm
G. Track Width       1560mm
H. Wheelbase       1185mm
J. Ground Clearance       205mm
K. Dumping Angle °       40
L. Dumping Height       2450mm
M. Maximum Reach       700mm
Rated Operating Capacity(Kg)       1500
Tipping load(Kg)       2500
Bucket Capacity(m3)       0.55
Lifting Force(Kg)       2200
Hydraulic Pump Flow(L/min)      75/125
Engine power(KW)       103KW
Weight(Kg)       3800
Max. Travel Speed(km/h)       12/18
Grade ability(° )       20
Tire       12-16.5
Fuel/hyd. Oil capacity(L) 90/90
