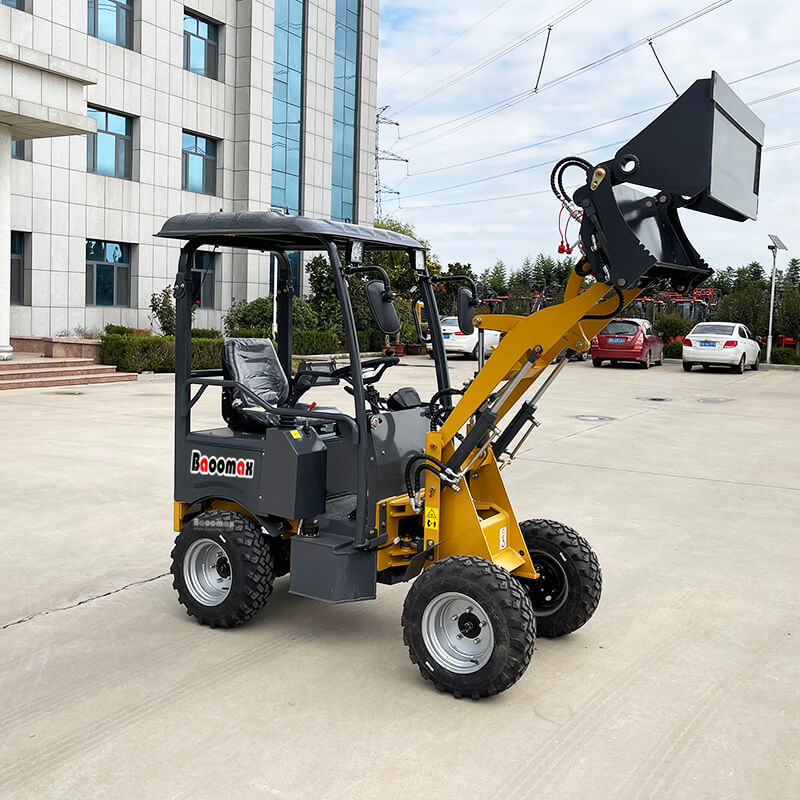

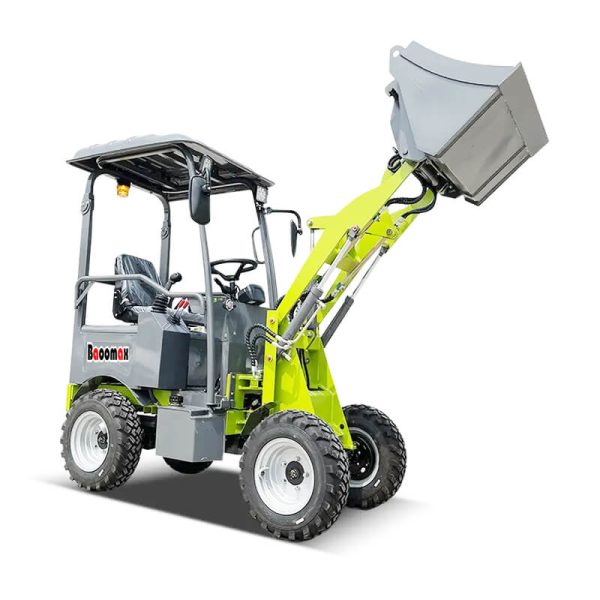

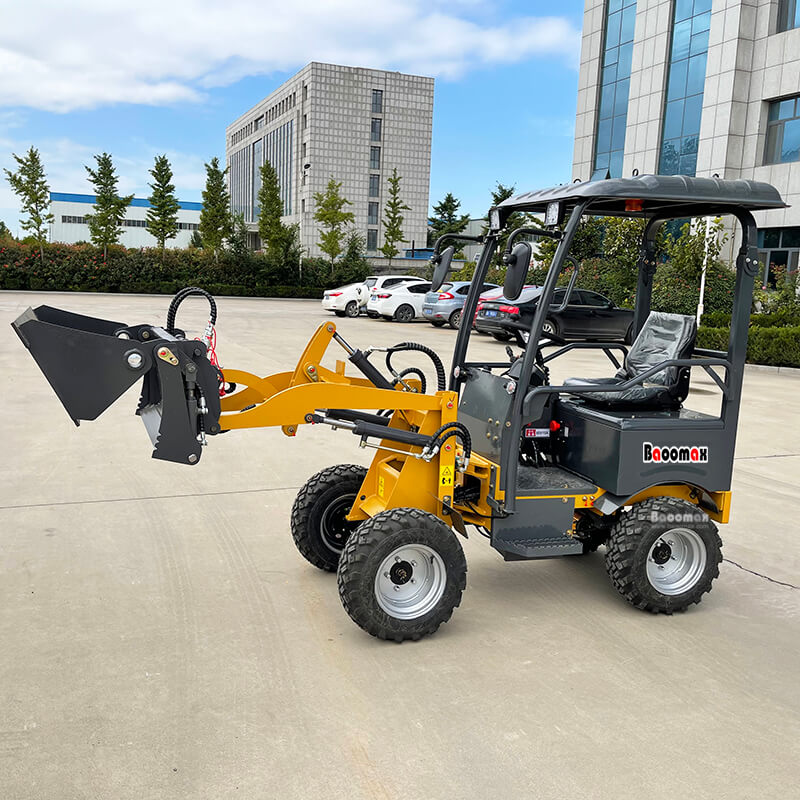

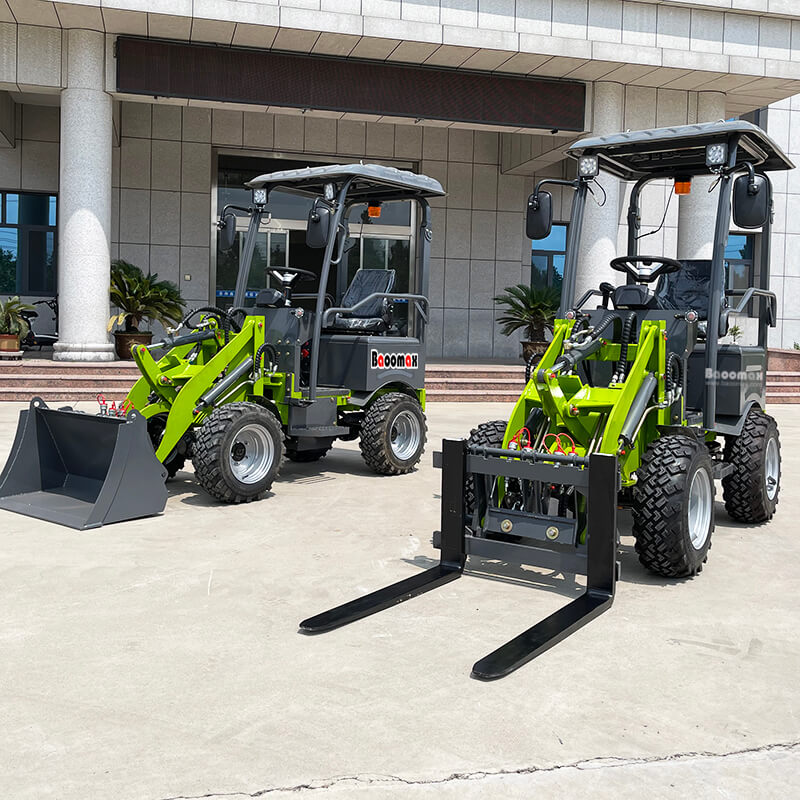

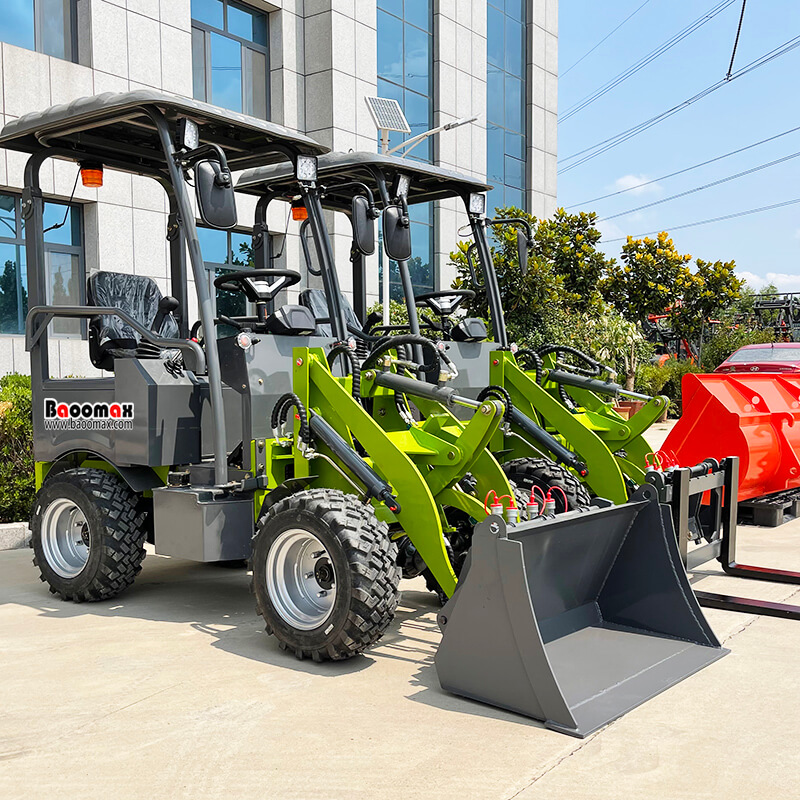

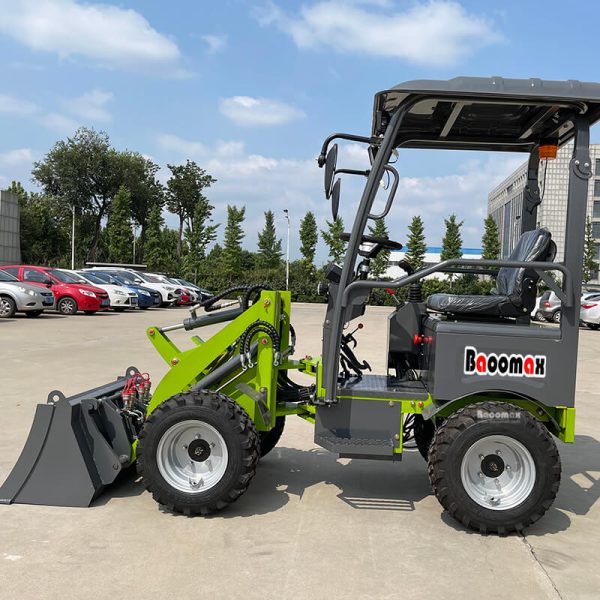

BA04E mini articulating loader main features:
- Lead acid battery or Lithium battery for optional
- Loading capacity： 400KG
- Bucket capacity : 0.2CBM
- 4 wheel drive double driving AC motor
- Can choose Agri tyre or normal tyres
- 6. Low machine heightthatcan across most warehouse.
BA04E mini articulated loader specification :
| Rated Load(kg) | 400 |
| Bucket rated capacity（m)³ | 0.2 |
| Dumping height（mm)（at 45°） | 1350 |
| Lifting Height（mm) | 2100 |
| Dumping Reach（mm) | 450 |
| Max. Lifting weight（kg） | 400 |
| Max. Excavation Force（kn) | 8 |
| Max. Grade ability | 15 |
| Max. Turning Angel | 28°±1 |
| Swing degree of the rear axle | 3 |
| Overall length（Bucket on Ground position）mm | 2900 |
| Bucket width（overall width） | 900 |
| Overall Height(mm) | 2070 |
| Wheel base(mm) | 1387 |
| Min Ground Clearance(mm) | 300 |
| Net Weight（kg) | 1000kg |
| Battery Model No. | 6-EVF-100A |
| rated capacity | 100Ah |
| No.of battery groups | 5 |
| Rated Voltage | 60V |
| Working hours（h） | 7h-8h |
